[Dixon Motorsports]

We are now one of the official dealer for Powerflex bush, I guess most of you know what it is but here is just a small info for someone want more info about the products -

Polyurethane has been with us as a specialised plastic for some thirty years. However recent advances have now made it possible to engineer very special properties into this exciting material. Suspension bushes are some of the most highly stressed components fitted to a motor car. They undergo enormous strains and in the most arduous of conditions with no maintenance or lubrication.

The material they are manufactured from is a rubber compound containing natural products which deteriorate with age. It becomes softer and more pliable, resisting the forces placed on it less and less. Therefore allowing more and more movement of suspension components and offering less and less control over the suspension geometry.

This in turn causes accelerated tyre wear, braking instability and poor handling. This is the single biggest reason you can instantly tell the difference driving a three year old car compared to a showroom new one. However even new cars will benefit from POWERFLEX bushes because of their superior design they offer much more effective control of the suspension components to a much greater extent than normal rubber items.

With the technological advances in this material it has been possible to overcome the common problem associated with harder bushes which is increased noise. By correctly engineering the polyurethane compound, bushes can be made 25-30% stiffer than new rubber items but with exactly the same noise absorbing properties. POWERFLEX bushes make sense.

POWERFLEX for prolonged tyre life.
POWERFLEX for improved performance.
POWERFLEX for increased safety.

Here is the full price list - for S2000

Front Upper Wishbone Bush

PFF25-201 £19.74 inc VAT and you will need 4 per car = £78.96 - S2ki Member price - £70

Front Lower Wishbone inner bush

PFF25-202 - £22.38 inc VAT and you will need 2 per car = £44.76 - S2ki Member price - £40

Front Arm Rear - Front Compliance Bush* New design for S2000

PFF25-203 - £69.54 inc VAT and you will need 2 = £139.08 = S2ki Member price - £125

Front Stainless Steel caster Adjustment kit -
This kit is complete with high tension bolt and comes with high quality stainless steel and work out cheaper than Honda parts.

PFF25-203G - £78.29 inc VAT and will need 2 = £156.58 - S2ki member price - £140

Rear Upper Wishbone bush
PFR25-209 to Fit - 2004 onward S2000 - £23.94 each and will need 4 = £95.76 - S2ki member price - £86
PFR25-210 to fit - 1999 to 2004 S2000 - £19.74 each and will need 4 = £78.96 - S2ki member price - £71
2004 onward -

Pre 2004


Rear Lower wishbone Front Bush

PFR25-211 - £22.38 inc VAT retail and will need 2 - £44.76 - S2ki member price - £40

Rear Lower wishbone rear bush

PFR-25-212 - £22.38 inc VAT retail and will need 2 - £44.76 - S2ki member price - £40

Rear Toe arm bush - Not needed if you have Hardrace rear toe arm fitted

PFR25-214 - £21.06 inc VAT retail and will need 2 = £42.12 s2ki member price - £38

Anti roll bar bush, they have 4 sized available - 25.4mm, 26.5mm, 27.2mm and 28.2mm
All prices are the same £17.10 each inc VAT retail and you will need 2 for each ARB = 34.2 - S2ki member price - £31

Powerflex doesn't do the suspension bottom bush, we can do this from Poly bush -
Front and rear suspension damper bush - £72.8 for all 4 of them.

All available to order now -
full package price inc Poly bush damper bush, Compliance bush adjustment kit will be - £650 inc VAT or £635 for early S2000.

We can do a full fitting for £700 plus VAT

Let me know if you have any question.

thanks

Dixon

This post has been edited by Dixon Motorsports: 02 February 2012 - 12:50 PM

[Dixon Motorsports]

More info about the Compliance bushes for the S2000

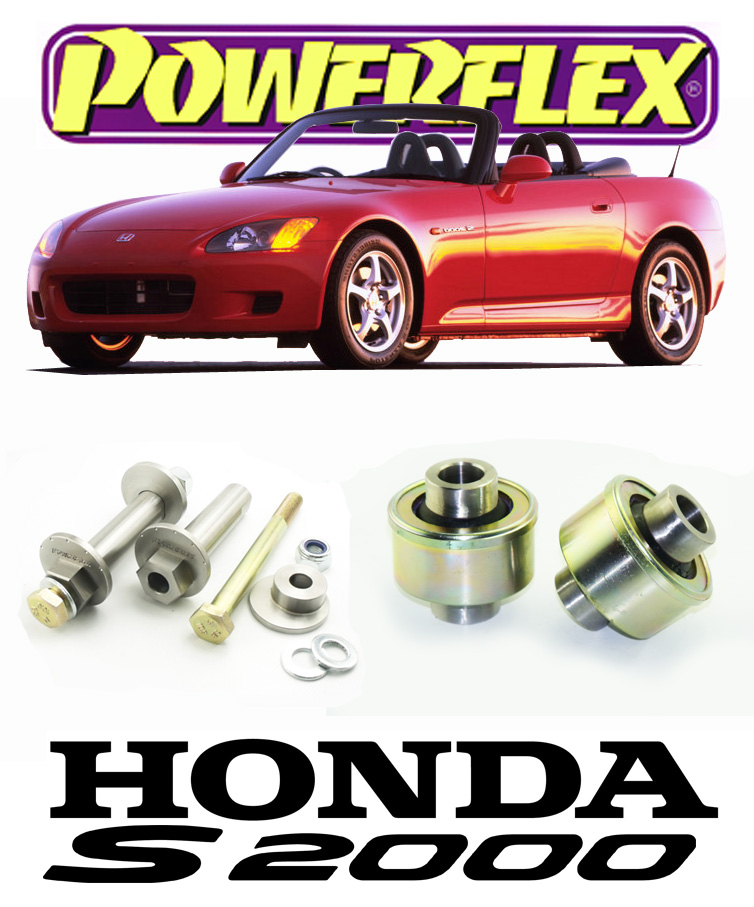

Honda S2000 Front Lower Arm Rear Compliance Bush and Eccentric Caster Adjustment Kit

The front lower arm rear complaince bush on the S2000 is now a common bush to fail. The rubber bonding fails causing a lot of geometry change as the bush allows too much movement.

With the introduction of PFF25-203 we have vastly improved the performance and reliability.

The design features a dual rate polyurethane ball operating in a polyurethane race encased in a zinc plated outer shell. The centre of the bush is stainless steel.

The principle advantage of this special design is that the radial compliance rate can be high and therefore geometry control is enhanced greatly. But with almost friction free operation as the suspension moves. Like a uniball but better.

In addition to the bush we have also manufactured an eccentric mounting kit PFF25-203G to go with the bush. The kit features a stainless steel eccentric centre location pin and a 10.8 spec. high tensile zinc plated mounting bolt. It is almost impossible to remove this bush without detroying the Honda eccentric part because it rusts into the bush, so this stainless steel kit solves that issue as well, and all for the same price as the Honda part.

[Chad!]

Hi Dixon,

Without taking me ages to look at all that and figure it all out. How much would it cost me for all the bushes apart from compliance bush? (just got the mugen ones). Just the bushes, no bolts or anything. I'm not certain which bolts I'll need until I do the job. My car is a 2003 by the way.

Cheers,

Chad.

[Dixon Motorsports]

For 2003 car without Compliance bush and compliance fitting kit it will be £371.8 inc VAT and that is with the polybush suspension bushes. Shipping will be £12

with the bolts you really need to put the car up the ramp and check each of them,.

[Chad!]

Thanks for that. I did check the bolts a while ago to see which ones are seized etc. But didn't dare use to much force on them due to needing to put it all back together. When it comes time to do the job, I'll give it a bit of stick and see what happens. For any bolts I need, how long would it take from me ordering them, to getting them delivered? I'm guessing just a couple of days?

Many thanks,

Chad.

[Dixon Motorsports]

I have most of the bolts and drop link in stock so it will be within 3 days.

[Dixon Motorsports]

They are now all on our online shop - use our discount code -bush10-

All the price on the online shop only show 1 piece, for front upper and rear upper you will need 4 of them so add 4 into the basket.

All the rest you will need 2 pieces, so add 2 pieces into the basket

use discount code check out for the S2ki member price

Link here -

http://www.raceparts...s.html?model=51

thanks

Dixon

[Dixon Motorsports]

Received the first set today, look at the quality is unbelievably good!

The Caster adjuster bolt and sleeve is well engineered and the bush have such smooth and solid movement, it gives the perfect compliance on the suspension arm with this kit and to have the feel to what Spherical Bearing would feel like.









See this video and check out how this bush work -

[adz9]

Dixon how would you rate the Polyflex compliance compared to the Mugen alternative? Do you think the Polyflex could wear out quicker due to the two moving parts its engineered with?

[Dixon Motorsports]

Powerflex one comes with Life time guarantee, Mugen one is just Honda OEM bush.

So far only Powerflex and Hardrace have true compliance bush with a perfect pivot movement only different is Powerflex one made by Rubber and Hardrace one is Spherical bearing.

[adz9]

Powerflex has a lifetime guarentee even on this compliance bush? That is very impressive....

I can also see, if the bush has a rubber inside how compliance has been engineered in - thanks Dixon, more food for thought for me. I will be in contact soon about the work, I just need to work out weather I am going to go the full rebush or just replace my seized bushes.

[Dixon Motorsports]

Yes lifetime warrantee on the compliance bush from powerflex. It really a great piece engineered product, they have spent alot of time to make this right and cleverly combine the benefit of having spherical bearing like performance but also to keep the comfort and long life together(longer than oem/mugen as it is lifetime warrantee).

[Chad!]

Hi Dixon,

Can I just send a payment to you for a set of bushes or do I have to do it through the online shop bit? As I said above, I don't need any nuts, bolts or cams. I don't need the compliance bushes or their fitting kit either. If you can put this all together for a 2003 car, can you let me know the full price including any discounts and delivery etc and I'll forward a payment on to you. (Need your address to send it to, is paypal ok? Or would you rather something else?)

Many thanks,

Chad.

[Dixon Motorsports]

I will drop you a pm tomorrow regarding the order or you can order it directly from www.racepartshop.com too and see whatelse you like there.

[Dixon Motorsports]

We now have spare set of early s2000 suspension arms and we can do exchange service if you want to get the arms change yourself. We can send you the arms with all bushes fitted and greased, also will be derust and paint it with anti rust paint. For 04 onward s2000, I will need your rear upper arms.

If you want to bring it in for us to do all the hardwork are also welcome and we can get the whole job done within a day now so you will not to need to leave the car here for a few days anymore,

Thanks

Dixon

[Venna]

hi dixon,

how much for the full bush kit and fitting, droplinks supplied by myself but fitted and lowering springs fitted and could this be done in a day or would you need the car for longer?

cheers

James

[Dixon Motorsports]

Yes we now have all arms and bushes in stock and can do it in a day. All bushes prices on page 1 and fitting is £700 plus vat.
