Hey all...it's been a while. I was wondering if anyone out there had some really good pictures of the S200 Head. I looked in the galary, but didn't find what I was looking for. A good break down diagram would be great, or pictures that someone took as they broke down the head for a rebuild. Basically, I want to know to the detail level of how the head goes together. Thanks all...take care.

Walz



Edited title for better description. Not sure if anyone really has some but you never know



Man, I thought you HAD pictures!





dang!! that's pretty!!

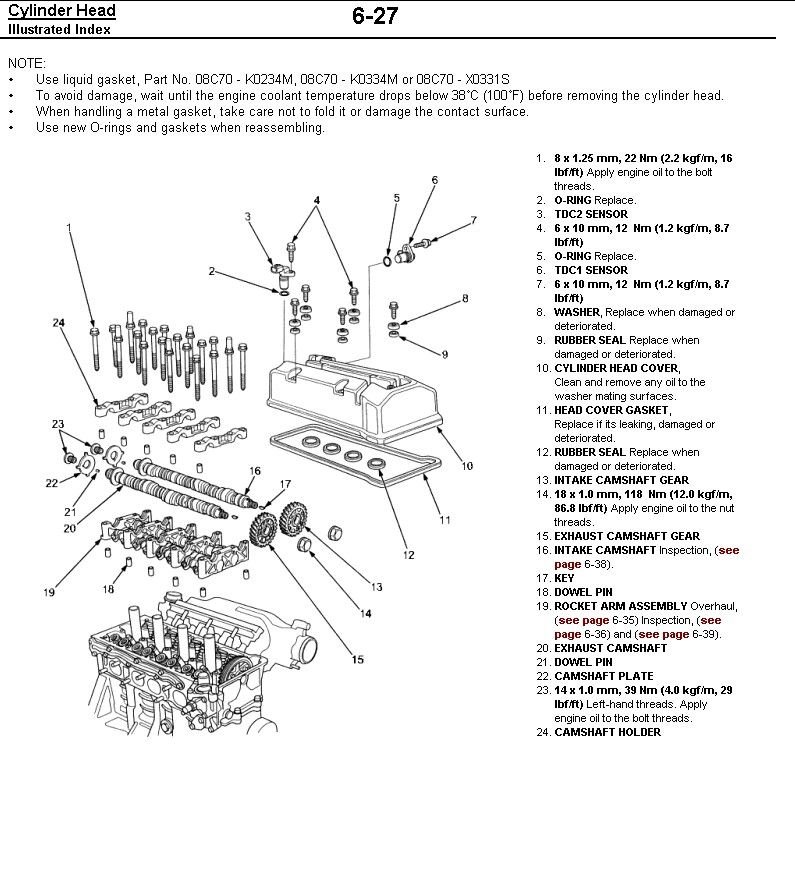

Is this what you're looking for?



thats how it should look like

this is how it isnt't





my poor car . i every time i see it



What does +90deg mean on the torque spec? Torque to spec then another 90deg with the wrench? Never saw that before.

--Mike

04 Silver/Black./Red on order.



As in a full circle has 360 degrees. So to torque specs, plus an additional 90 degree turn of the wrench. Not sure why you'd put it that way instead of just upping the torque spec.
