DIY Front Splitter with pics :)

#1 User is offline   JPRICE!

  • Group: Guest
  • Posts: 1,264
  • Joined: 20-September 06
  • Gender:Male
  • Location:RICHMOND, VA
  • Country: United States

Posted 03 May 2011 - 07:18 PM

Me and my friend decided to make a custom splitter for the s2000 since I plan on tracking it as much as I can this summer. Its still a work in progress so tomorrow ill be putting more pictures up, hopefully it will be finished!

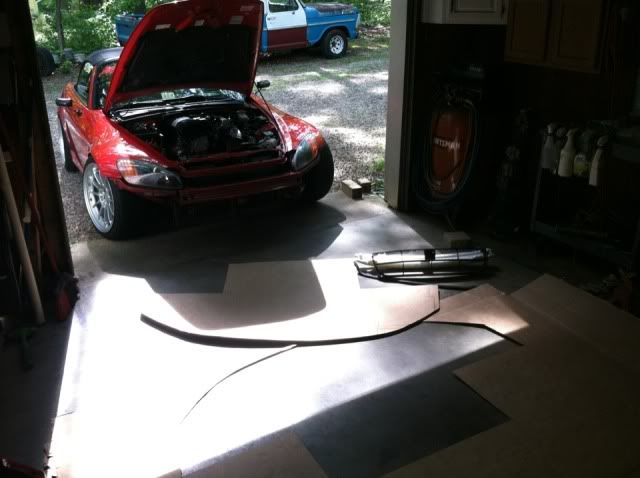

Started off with taking the bumper off and tracing the shape of the lip on a big sheet of cardboard and cutting it out. We made the trace 5 inches bigger in the front for the lip of the splitter.
Posted Image

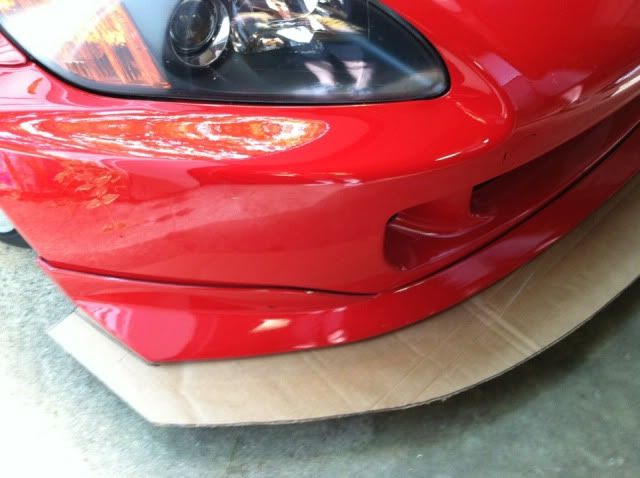

Next we mocked up the splitter on the car to see how it looks.
Posted Image
Posted Image
Posted Image

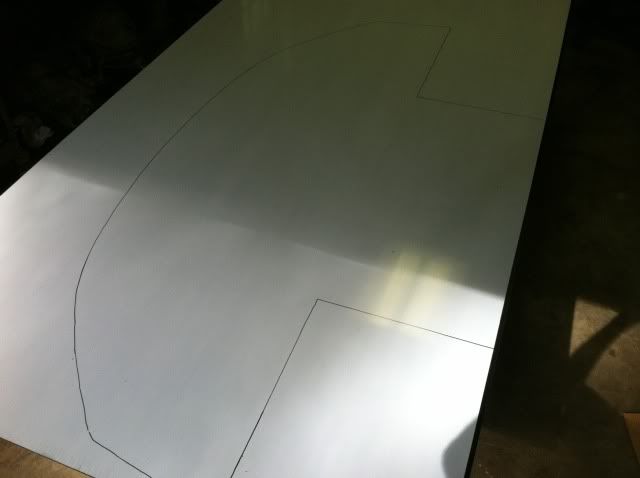

Very happy with how it looked so we went ahead and cut out the splitters shape on "alumalite" which basically is some sort of thick foam core with aluminum in the center which will work out great.
(its black but has some plastic on it that will be taken off when its put on)
Posted Image
Posted Image

next we started mocking up a frame for the splitter to make it more stable for when the car is tracked.
Posted Image

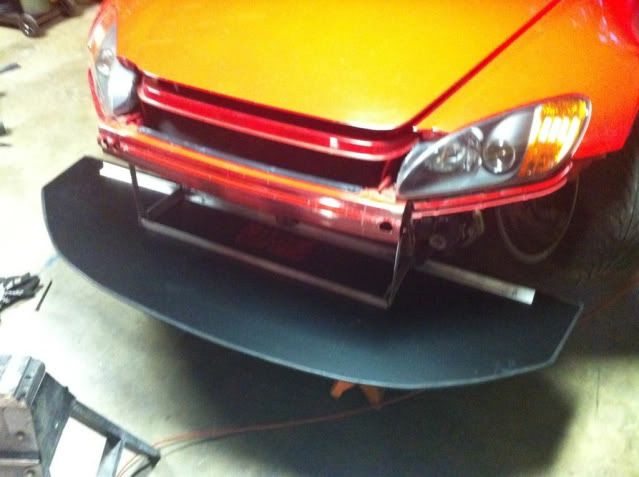

welded up!
Posted Image


Posted Image
Posted Image


UPDATE

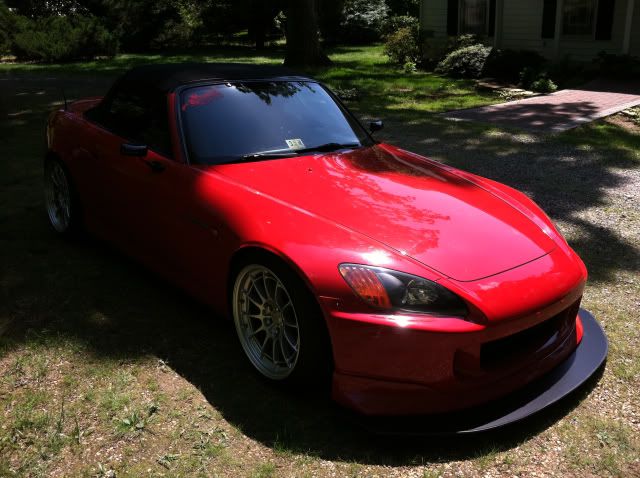

Finished up. Prob going to order some support rods for it and maybe trim it back a inch. VERY happy with the finished product. Were prob going to start selling them for this lip and the ap2 :) Ill do a full shoot with thread once I get the rear diffuser in and on the car.
Posted Image
Posted Image
Posted Image


rods finally on
Posted Image
Posted Image
Posted Image Posted Image
SPECIAL AGENCY

#2 User is offline   Dops2K

  • Group: Guest
  • Posts: 259
  • Joined: 04-May 08
  • Country: United States

Posted 03 May 2011 - 07:32 PM

Pretty neat! What's the cost so far?

#3 User is offline   Dops2K

  • Group: Guest
  • Posts: 259
  • Joined: 04-May 08
  • Country: United States

Posted 03 May 2011 - 07:45 PM

View PostJPRICE!, on 03 May 2011 - 07:36 PM, said:

So far around $120, 4x8 sheet of that stuff was a little over 100 and then whatever the cost of the aluminum for the frame was. Just need to buy the hardware tomorrow and some sort of rubber seal to cap the splitter with. Prob going to do side diffusers as well with the leftovers.


It looks good. Can't wait to see the final products! Keep up the good work :thumbup: :thumbup: :thumbup:

#4 User is offline   s2cho

  • Group: Guest
  • Posts: 1,832
  • Joined: 13-October 10
  • Gender:Male
  • Country: United States

Posted 03 May 2011 - 08:38 PM

:iagree:

#5 User is offline   nateman101

  • Group: Guest
  • Posts: 208
  • Joined: 13-October 09
  • Gender:Male
  • Country: United States

Posted 03 May 2011 - 09:54 PM

Ppprretttyy! i wanna try this :rolleyes:
00' silverstone
Fujita CAI, Seibon CF hood, DC headers, Invida TP Greddy SE single, Apexi AFC neo, Tein Mono-Flex, Cusco 4 point Roll Bar (poweder coated black), Baffled Valve Cover, Stronger PCV valve, Oil Catch can, Candy Blue Ap1 Street wheels, Black Ap1 wheels with R Comps for the track :)
Posted Image

#6 User is offline   jsenclosure

  • Group: Member
  • Posts: 4,941
  • Joined: 25-November 10
  • Gender:Male
  • Location:Guilderland, NY
  • Country: United States

Posted 04 May 2011 - 08:56 AM

so far so good

#7 User is offline   daktruckie99

  • View gallery
  • Group: Guest
  • Posts: 8,684
  • Joined: 06-May 07
  • Gender:Male
  • Location:Berkshires, MA
  • Country: United States
  • Interests:Lime Rock Park

Posted 04 May 2011 - 09:39 AM

Looks similar to mine. Mine is aluminum in a very similar shape with a strong aluminum chassis bolted to the frame. You'll want support rods for the splitter, and you'll generate so much front downforce you'll need a wing in the back to balance it.

With just a splitter you're rear end will be incredible loose at high speed.

Posted Image

#8 User is online   //steve\\

  • Group: Member
  • Posts: 9,712
  • Joined: 18-September 06
  • Gender:Male
  • Location:The 804
  • Country: United States

Posted 04 May 2011 - 02:45 PM

I think it sticks out too far. Just sayin. You'll definitely need the support rods at that size.

#9 User is offline   emac0408

  • Group: Guest
  • Posts: 1,464
  • Joined: 12-June 09
  • Gender:Male
  • Location:Canton, GA
  • Country: United States

Posted 04 May 2011 - 02:49 PM

Subcribed! It should look great with the side diffusers too.

#10 User is offline   vasquezgno

  • Group: Guest
  • Posts: 1,510
  • Joined: 08-September 09
  • Gender:Male
  • Location:queens,newyork
  • Country: United States

Posted 04 May 2011 - 03:05 PM

it looks to big
Dragonball z vegeta's voice "Its over 9k"

Posted Image[/URL]

#11 User is offline   JPRICE!

  • Topic Starter
  • Group: Guest
  • Posts: 1,264
  • Joined: 20-September 06
  • Gender:Male
  • Location:RICHMOND, VA
  • Country: United States

Posted 04 May 2011 - 05:42 PM

Standard true splitters are 5 inches. That is what this one is. We are building a frame which will have rods connect from the closest part of the top of the frame that will go upward back to the radiator support framing wich will act as the support rods but wont be visible if that makes any since haha basically we will be making rods that will be mounted just behind the grill and will go back. Ill get more pics up, with the left over material were going to make side diffusers as well. I also have a rear diffuser shipping out this week so hopefully it will all be balanced.

#12 User is online   //steve\\

  • Group: Member
  • Posts: 9,712
  • Joined: 18-September 06
  • Gender:Male
  • Location:The 804
  • Country: United States

Posted 05 May 2011 - 03:43 PM

That front diffuser is going to provide way more downforce than the rear one especially at that size. I don't think it needs to be quite that big to get the affect you're looking for especially on a small car like the s2k.

#13 User is offline   Drkphnx

  • View gallery
  • Group: Community Organizer
  • Posts: 11,552
  • Joined: 20-April 06
  • Gender:Male
  • Country: United States
  • Interests:( . Y . )

Posted 05 May 2011 - 03:59 PM

View Postvasquezgno, on 04 May 2011 - 03:05 PM, said:

it looks to big



that's what she said :LOL: . but seriously, It looks great. subscribing to see end result.
Posted Image
Posted ImagePosted ImagePosted ImagePosted ImagePosted Image

#14 User is offline   JPRICE!

  • Topic Starter
  • Group: Guest
  • Posts: 1,264
  • Joined: 20-September 06
  • Gender:Male
  • Location:RICHMOND, VA
  • Country: United States

Posted 06 May 2011 - 09:09 AM

View Post//steve\\, on 05 May 2011 - 03:43 PM, said:

That front diffuser is going to provide way more downforce than the rear one especially at that size. I don't think it needs to be quite that big to get the affect you're looking for especially on a small car like the s2k.



your prob right, its aarons fault. haha

#15 User is offline   JPRICE!

  • Topic Starter
  • Group: Guest
  • Posts: 1,264
  • Joined: 20-September 06
  • Gender:Male
  • Location:RICHMOND, VA
  • Country: United States

Posted 06 May 2011 - 09:39 AM

updated up top :)

#16 User is offline   8_ball

  • Group: Guest
  • Posts: 2,989
  • Joined: 28-April 06
  • Location:Lakewood, OH
  • Country: United States

Posted 06 May 2011 - 09:43 AM

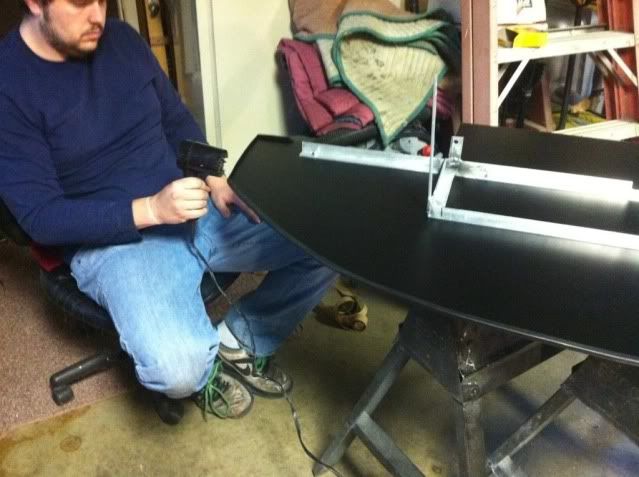

What did you put around the outer edge? Looks like you have a heat gun at work in the one pic.
