My Arduino based datalogging project
#1
Thread Starter
My Arduino based datalogging project
I wanted to share project I have been working on.
This isn't actually diy for everyone. Some basic knowledge of electronics and Arduino is useful. Of course if you have enough curiosity and you want to learn then this isn't actually that hard.
There is similar and inexpensive device that does the same and even more on the market: RaceDAC - Makes you go Faster!
I wanted to log oil pressure and oil temp on my S2000, but didn't want to pay many hundred euros for race car datalogger. I have been using Racechrono laptimer on my Android phone and found out that Racechono supports diy sensors via Bluetooth.
I found this datalogging project and it inspired and helped me to build my own: https://racechrono.com/forum/discuss...-and-bluetooth
Arduino is cheap programmable microcontroller. For more info: https://www.arduino.cc/
In this case Arduino is reading sensor data, converting it to actual reading and sending it with Bluetooth to Android phone running Racechrono. Connection method is RFCOMM and data format is RC3. More info: https://racechrono.com/article/2572
Data is logged and stored by the phone, so Arduino isn't storing the data.
Parts used:
Arduino Uno
Cytron Arduino proto shield
HC-06 Bluetooth module
0,6 w resistors (10k 2pcs, 5,1k and 1k)
2ch dip switch (has to be switched off when uploading code to arduino)
Angled female pin header R2,54
0,6mm2 single core wire for proto shield
JST-SM connectors with wires
0,75mm2 wires for power, ground and temperature sensor wiring
Junction box
Bosch NTC M12-H oil temperature sensor and compatible Bosch compact connector
AEM X-series oil pressure gauge 0-100psi / 0-7bar (30-0301)
Components excluding temp. sensor and oil pressure gauge cost around 50€.
Racehrono Pro is needed and it's 20€
Bosch oil temp sensor was about 25€.
AEM oil pressure gauge was around 200€ including shipping.
AEM oil pressure gauge has option to output 0-5v analog signal for datalogger.
First I changed baud rate to 115200 on HC-06 module with AT-commands using Arduino IDE serial monitor. I used Arduino Uno as USB to TTL converter using this guide: https://create.arduino.cc/projecthub...nverter-475533
Arduino is running on 5v voltage, but HC-06 supports only 3,3v so i used voltage divider circuit on txd pin to lower 5v to 3,3v (same as in diagram lower). In this case connect txd to txd and rxd to rxd.
More info of the AT-commands: HC-06 hc01.comV2.0 | Martyn Currey
Only command i used was: AT+BAUD8.
After this I soldered parts and wires to proto shield, uploaded code to Arduino and fitted the device inside typical junction box. Power for the device comes from drivers foot well fuse box ignition connector. I added 2A fuse for protection.
The device is fitted on drivers footwell, oil temp sensor is measuring temp from oil pan and oil pressure is measured from oem oil pressure switch location. I will add pictures from these later on.
I haven't tested this device on street yet, because car is on winter storage, but I tested it on the garage and it seemed to work. Last summer I had earlier prototype just logging oil pressure and it worked great.
I will update how it works when I get to test it on the road and track.
Code for arduino: https://filedn.com/lKOo3aQn9ubHtKC7D...loggerCode.txt
Oil pressure is logged at 10hz updating frequency and oil temp with 1hz.

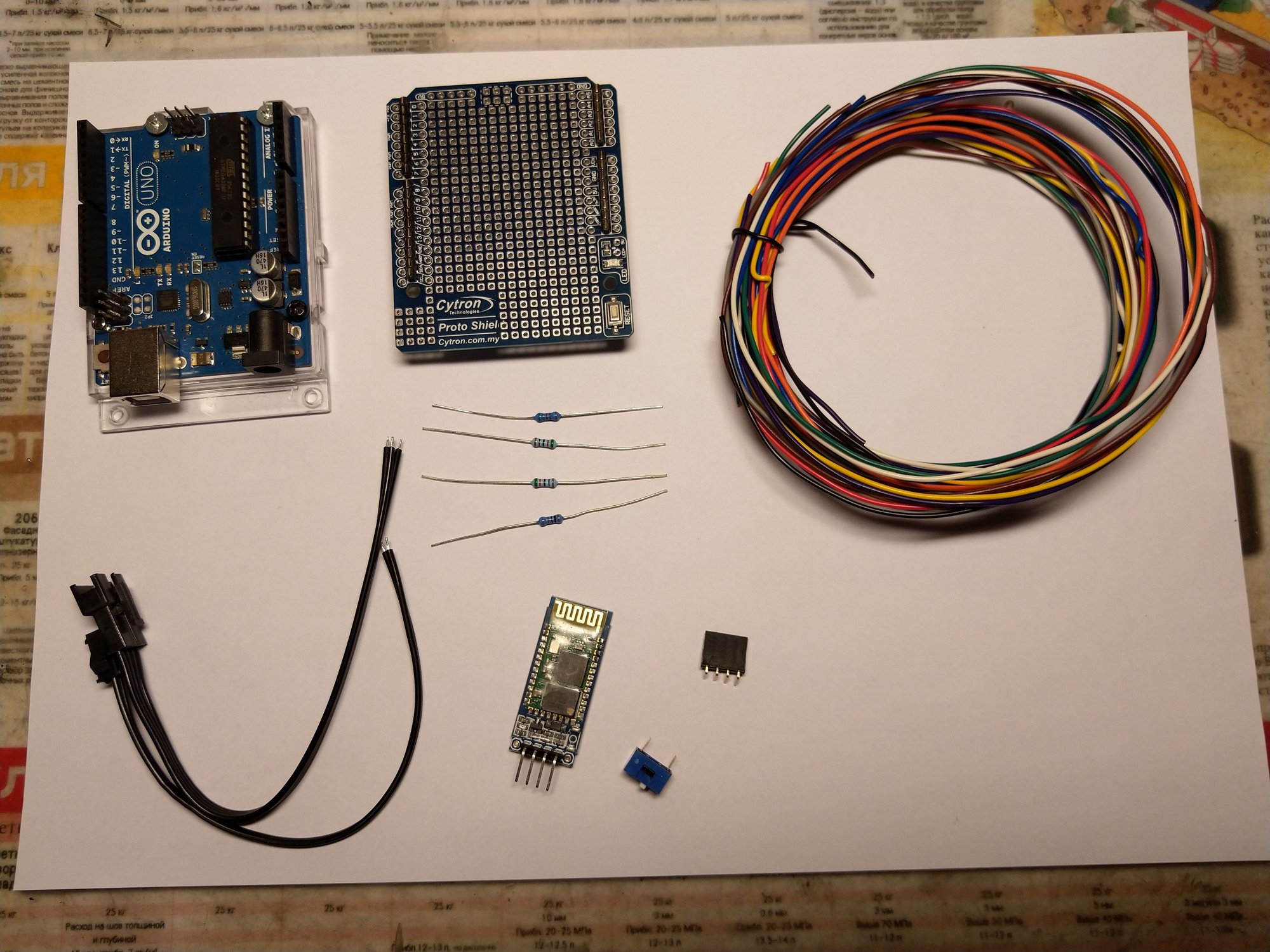

Components:

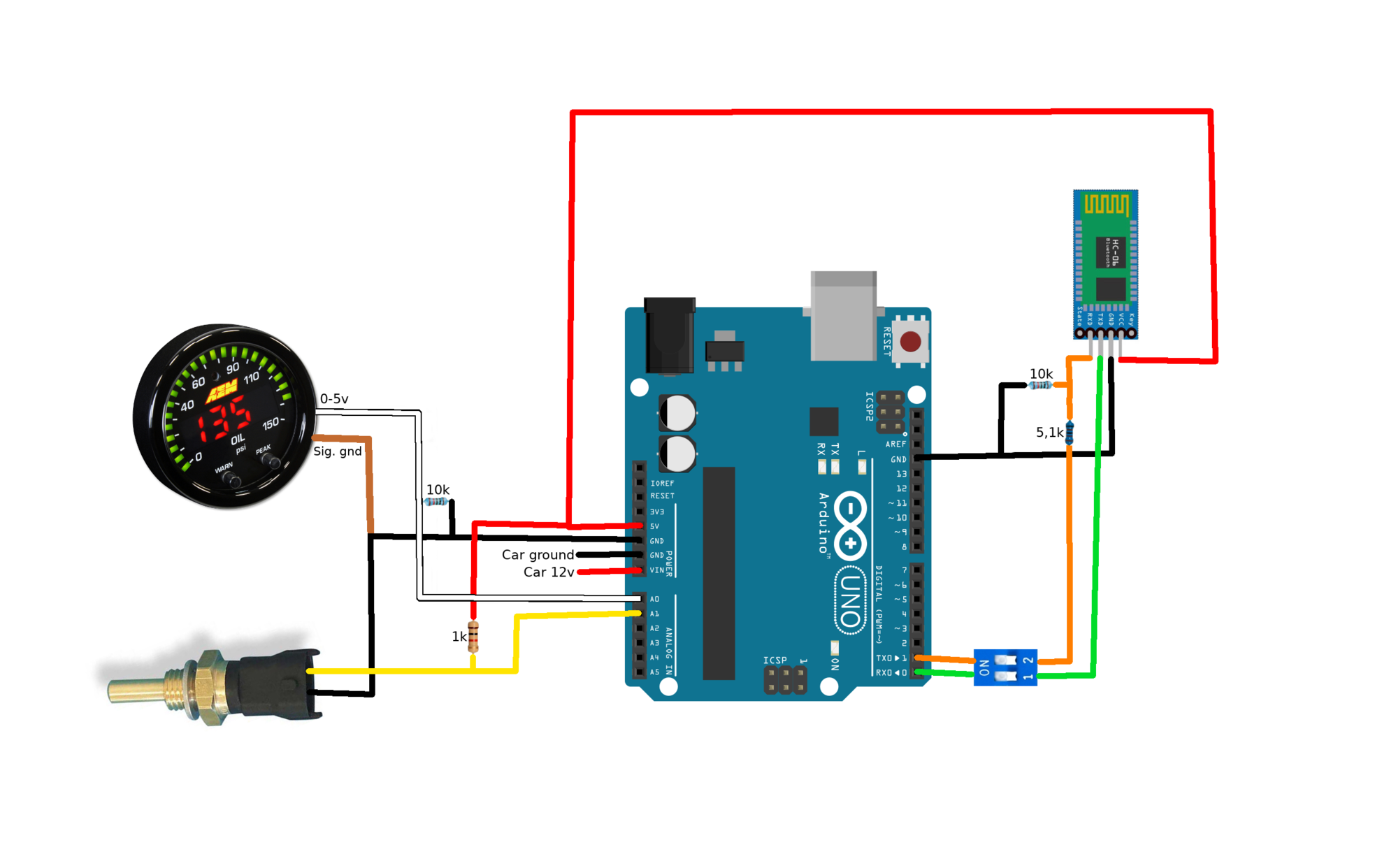

Wiring diagram:
After soldering:
HC-06 connected:

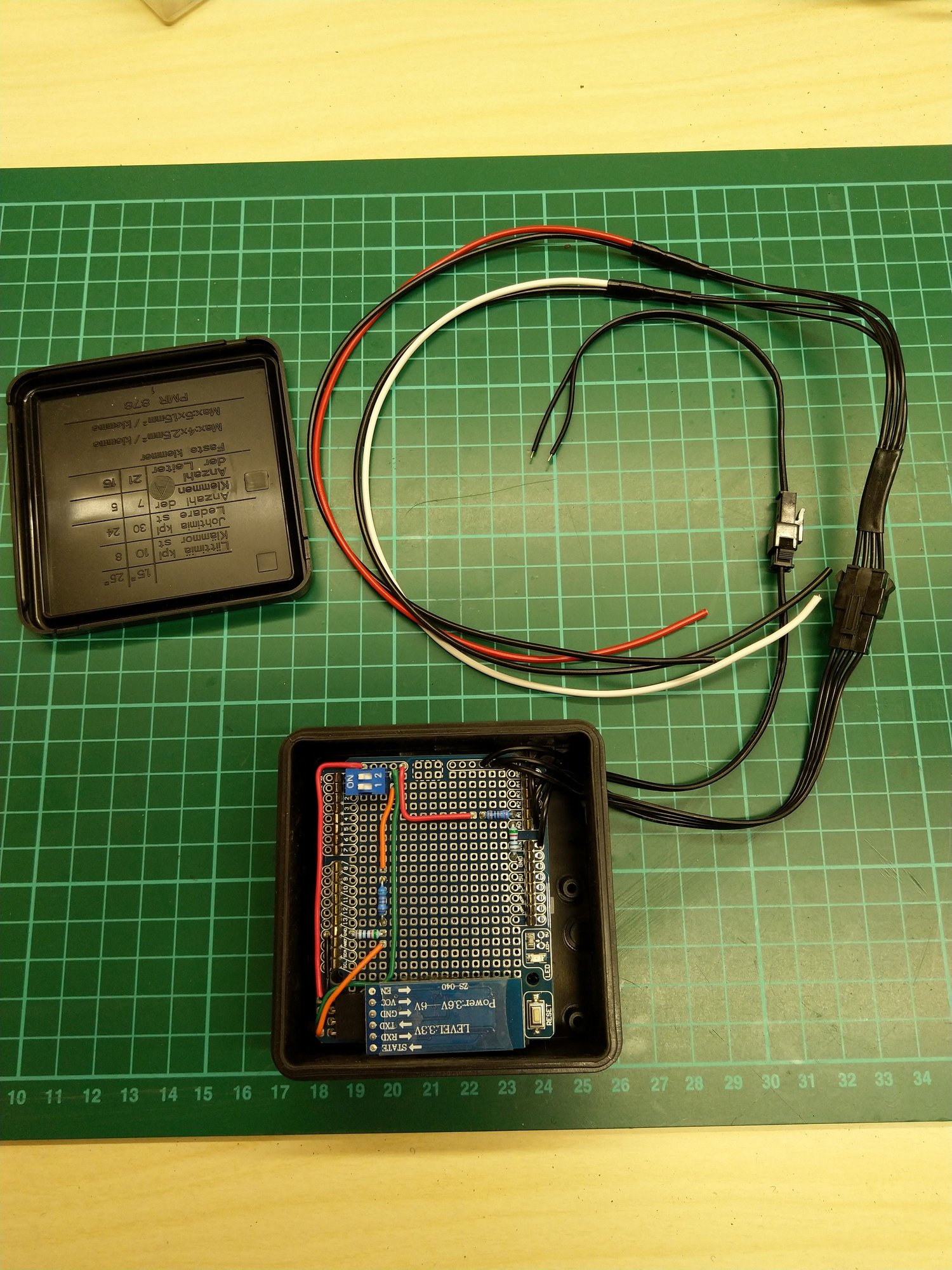

In enclosure:
This isn't actually diy for everyone. Some basic knowledge of electronics and Arduino is useful. Of course if you have enough curiosity and you want to learn then this isn't actually that hard.
There is similar and inexpensive device that does the same and even more on the market: RaceDAC - Makes you go Faster!
I wanted to log oil pressure and oil temp on my S2000, but didn't want to pay many hundred euros for race car datalogger. I have been using Racechrono laptimer on my Android phone and found out that Racechono supports diy sensors via Bluetooth.
I found this datalogging project and it inspired and helped me to build my own: https://racechrono.com/forum/discuss...-and-bluetooth
Arduino is cheap programmable microcontroller. For more info: https://www.arduino.cc/
In this case Arduino is reading sensor data, converting it to actual reading and sending it with Bluetooth to Android phone running Racechrono. Connection method is RFCOMM and data format is RC3. More info: https://racechrono.com/article/2572
Data is logged and stored by the phone, so Arduino isn't storing the data.
Parts used:
Arduino Uno
Cytron Arduino proto shield
HC-06 Bluetooth module
0,6 w resistors (10k 2pcs, 5,1k and 1k)
2ch dip switch (has to be switched off when uploading code to arduino)
Angled female pin header R2,54
0,6mm2 single core wire for proto shield
JST-SM connectors with wires
0,75mm2 wires for power, ground and temperature sensor wiring
Junction box
Bosch NTC M12-H oil temperature sensor and compatible Bosch compact connector
AEM X-series oil pressure gauge 0-100psi / 0-7bar (30-0301)
Components excluding temp. sensor and oil pressure gauge cost around 50€.
Racehrono Pro is needed and it's 20€
Bosch oil temp sensor was about 25€.
AEM oil pressure gauge was around 200€ including shipping.
AEM oil pressure gauge has option to output 0-5v analog signal for datalogger.
First I changed baud rate to 115200 on HC-06 module with AT-commands using Arduino IDE serial monitor. I used Arduino Uno as USB to TTL converter using this guide: https://create.arduino.cc/projecthub...nverter-475533
Arduino is running on 5v voltage, but HC-06 supports only 3,3v so i used voltage divider circuit on txd pin to lower 5v to 3,3v (same as in diagram lower). In this case connect txd to txd and rxd to rxd.
More info of the AT-commands: HC-06 hc01.comV2.0 | Martyn Currey
Only command i used was: AT+BAUD8.
After this I soldered parts and wires to proto shield, uploaded code to Arduino and fitted the device inside typical junction box. Power for the device comes from drivers foot well fuse box ignition connector. I added 2A fuse for protection.
The device is fitted on drivers footwell, oil temp sensor is measuring temp from oil pan and oil pressure is measured from oem oil pressure switch location. I will add pictures from these later on.
I haven't tested this device on street yet, because car is on winter storage, but I tested it on the garage and it seemed to work. Last summer I had earlier prototype just logging oil pressure and it worked great.
I will update how it works when I get to test it on the road and track.
Code for arduino: https://filedn.com/lKOo3aQn9ubHtKC7D...loggerCode.txt
Oil pressure is logged at 10hz updating frequency and oil temp with 1hz.
Components:
Wiring diagram:
After soldering:
HC-06 connected:
In enclosure:
The following users liked this post:
Rubens Prohaska (03-25-2020)
#4
Thread Starter

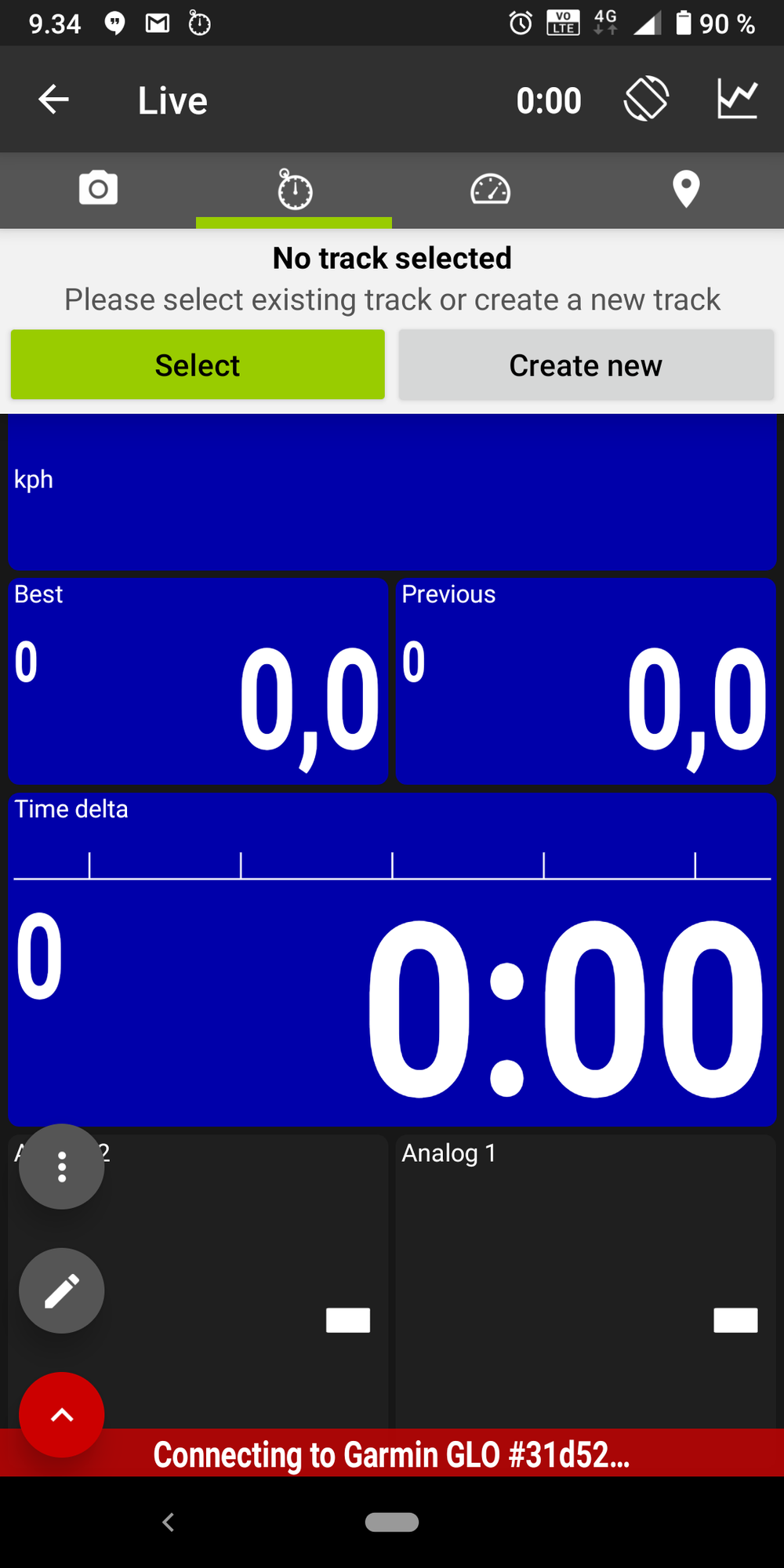

Both are on bottom of the screen:
Logging is always on and you cannot switch it off.
#5
Thread Starter
I'm have been playing a bit with Raspberry pi. Now it's logging my garage temperature and the data can be accessed from the internet.
For me Arduinos C-code felt more simple than Raspberrys Python.
Trending Topics
#8
nice Job, I'm study arduino and AP2 CLuster from a 07 to create some features for "transplant" this cluster for other cars... include a 07 cluster into a older S2k... I'll create another post and show some things like a arduino VSS and ECT (from a under 2006) conversion bord (I'll take it into a civic ej1 1995). but I'll ask for some help with a K-line CODES
#9
Thread Starter
nice Job, I'm study arduino and AP2 CLuster from a 07 to create some features for "transplant" this cluster for other cars... include a 07 cluster into a older S2k... I'll create another post and show some things like a arduino VSS and ECT (from a under 2006) conversion bord (I'll take it into a civic ej1 1995). but I'll ask for some help with a K-line CODES
#10
Thread Starter
Looks like the device is working.
Sample video from city driving:
Oil pressure is Analog 1 in bar
Oil temp. is Analog 2 in celcius
Some pictures:

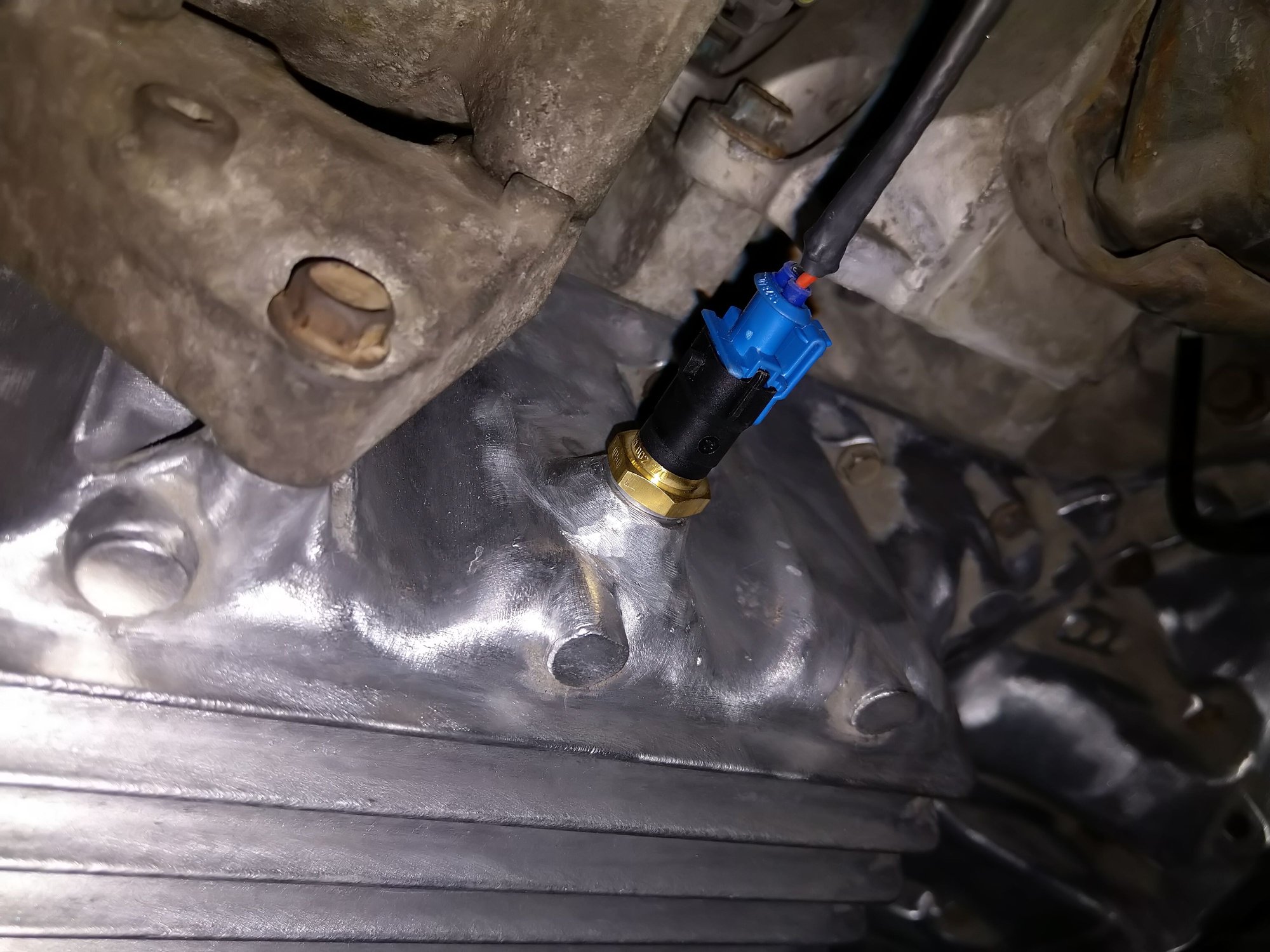

Temp. sensor. AC compressor at top left.
Pressure sensor:
Hardware used:
Motamec -03AN/JIC Stainless Steel Braided PTFE Brake Hose
Motamec AN JIC -3 AN3 Straight Teflon PTFE Hose Fitting End Alloy 2pcs
Motamec AN -3 AN3 JIC To 1/8" BSPT Thread 1/8x28 Alloy Fitting Adapter (to block)
AN -3 (AN3 AN 03) to 1/8" NPT Female (to sensor)
Switch for Arduino:
Sample video from city driving:
Oil temp. is Analog 2 in celcius
Some pictures:
Temp. sensor. AC compressor at top left.
Pressure sensor:
Hardware used:
Motamec -03AN/JIC Stainless Steel Braided PTFE Brake Hose
Motamec AN JIC -3 AN3 Straight Teflon PTFE Hose Fitting End Alloy 2pcs
Motamec AN -3 AN3 JIC To 1/8" BSPT Thread 1/8x28 Alloy Fitting Adapter (to block)
AN -3 (AN3 AN 03) to 1/8" NPT Female (to sensor)
Switch for Arduino:
