Hey everyone ---- I'm in process on my custom rear diffuser --


I've got the prelim core modeled and fit to the bumper and subframe

--- But I could use some input before the glass goes on so..

I'm looking for constructive crit (but I'm ready for the flames..)

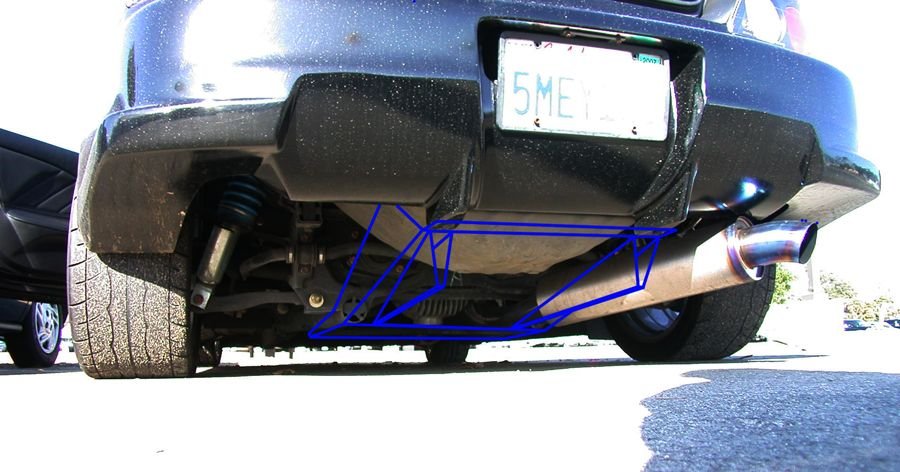

so here are a couple of pictures (blue line is PS)
remember this is just foam -
final peice won't be white....








I realize these pictures aren't the best -- if any one wants to see the thing from another angle ask ---
I'm going to get some "classic style" mirror shots tommorrow in the daylight


Thanks



make one like the j's diffuser but keep your center piece



looks good. I think id they came farther out maybe it be better?



I think your drawing is pretty good.



id add something on the end towards the location of the exhaust...its seems a little unsymmetrical since the left side has something there and the right side just ends...



lookin good tho



I started w/ the Feel's piece for reference --



and ended up with it being a cross between the Feel's and the TopSecret

You can see in the photo that the area behind my wheels is already delt w/ by the C-west bumper which has pretty thorough aero work.

My diffuser extends all the way up to the cross bar -- i have an axcess hole for the jack point on the rear diff...

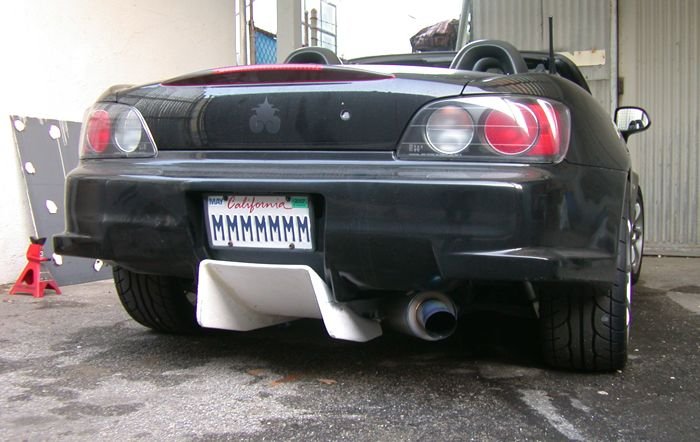

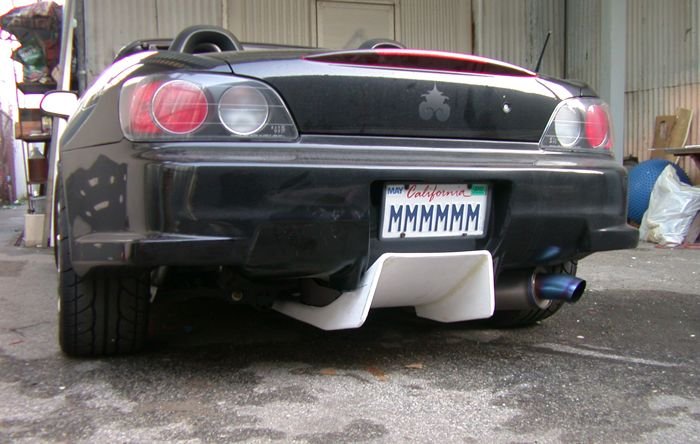

New photos --

I worked on it some more today...

I'm thinking of just going w/ the center piece. I can always add the sides later





what do you think?



i think it looks hot! custom parts are always hot, cause you are the only one with it.



not sure how you're doing to do the right side seeing how the exhaust really interferes with the whole design.
