Unhappy Broken TCT Bolt - Help!

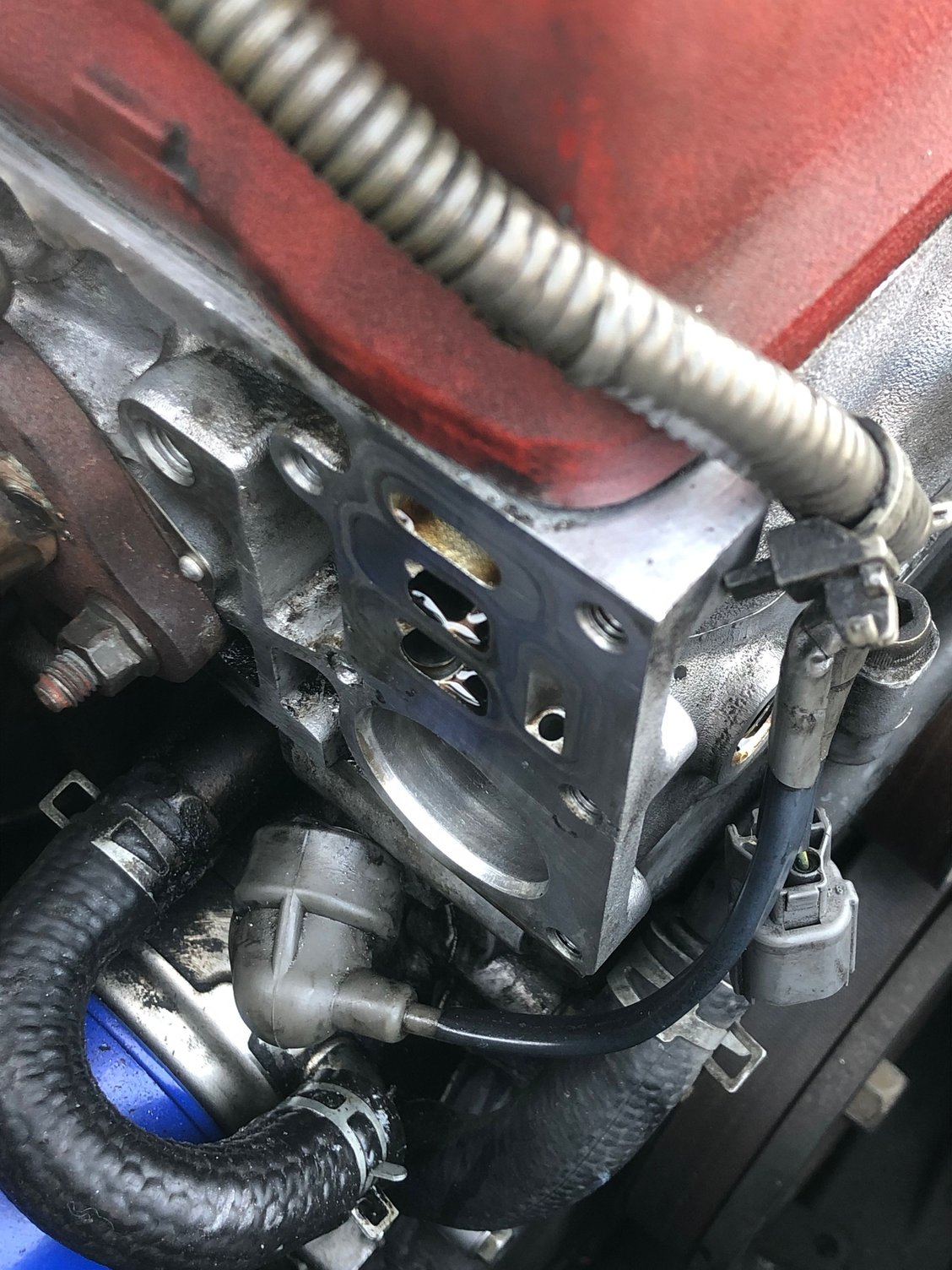

In need of some desperate help. Broken bolt that needs removing, screw extractor didnt help much.
Any suggestions??


s2kywalker is offline
Old 04-26-2019, 04:01 PM
  #2

Join Date: Jan 2011
Posts: 141
Received 1 Like on 1 Post
Default

If you have these hex bolts with a socket adapter at the end, you can try to hammer in one of these that is bigger than the hole you drilled there, then attach a wrench on the socket end to loose it out.

kukudm is offline
Old 04-26-2019, 04:30 PM
  #3

Join Date: Aug 2012
Posts: 4,422
Likes: 0
Received 241 Likes on 212 Posts
Default

Often when I am in thos predicament, the mere act of drilling out the broken bolt ends up removing it. The heat from drilling loosens the threads, and the hole allows boot to shrink a bit. The bit rotation is in the direction to unscrew bolt. So drilling further may remove it.

Some things to note. A dull drillbit is going to simply work harden the bolt, making it harder and harder to remove. Make sure you have a good, fresh drillbit.

Your hole is off center. Next time grind it flat, and use a spring punch to more accurately center your drilling effort. And start with a smaller bit and work up.

For this time, get a good, sharp, smaller bit that won't eat the threads in that offset hole. Bit don't go too small. The worst thing that could happen now is you break off a drillbit in that hole. Make your problem 10 times worse. If you have to chew the threads up a little using a thicker bit in order to be sure not break it, thats better than breaking a drillbit in there.

Get Mapp gas torch. Yellow bottle from Home depot. Looks like a propane torch, but its muuuuch hotter. It uses a different nozzle, don't use your propane one.

Fire it up and get a lot of heat into that bolt, then drill the hole. Then while its still hot try hammering in a removal tool.

If there os anything as bad as breaking a drillbit in there, its breaking a hardened ez out bit. I like the idea of the hammering in a hex driver instead. It lets you use a socket wrench with lots of leverage, and less brittle, less likely to snap like an ez out.
Car Analogy is offline
Old 04-27-2019, 01:48 AM
  #4

flanders's Avatar

Join Date: Aug 2013
Location: Sweden
Posts: 2,743
Received 133 Likes on 130 Posts
Default

Reverse or left hand drill bits are very effective bolt extractors, if there is still material left in the bolt I would try that.
Maybe use a fine dremel carbide tip first to try and get your hole a bit more centered.
flanders is online now
Old 04-27-2019, 02:33 AM
  #5

noodels's Avatar

Join Date: Nov 2013
Location: Mars
Posts: 3,504
Received 63 Likes on 62 Posts
Default

Center punch and a small hammer
noodels is offline
Old 04-27-2019, 04:06 AM
  #6

Chuck S's Avatar

Join Date: Jul 2014
Location: Chesterfield VA
Posts: 7,200
Received 259 Likes on 246 Posts
Default

Curious if this broke removing or installing the TCT. Be careful. Torque spec for these bolts is 8.7 lbf-ft (that's less than nine!).

-- Chuck
Chuck S is offline
Old 04-27-2019, 04:18 AM
  #7

noodels's Avatar

Join Date: Nov 2013
Location: Mars
Posts: 3,504
Received 63 Likes on 62 Posts
Default

Also put something in the holes to stop debris
noodels is offline
Old 04-27-2019, 08:12 AM
  #8
Registered User

Join Date: Oct 2016
Location: North Chicago Suburbs
Posts: 490
Received 24 Likes on 23 Posts
Default

Wow, good luck. I'd probably be applying some heat along with the methods suggested in this thread.
lookstoomuch is offline
Old 04-27-2019, 10:00 PM
  #9
Registered User

Hertz Donut's Avatar

Join Date: Nov 2018
Location: New Zealand
Posts: 154
Received 12 Likes on 11 Posts
Default

I had this happen with a PS pump bolt I over-tightened into an engine block once. I thought I was out of luck when I couldn't get a left-hand threaded extractor to budge it, and swearing wasn't getting me anywhere, even going up to Navy level. I sprayed the area liberally with anti-seize and gave up for the night.

The next day I glumly fiddled with the end of the bolt, wondering what to do, and damned if it didn't just spin out in my hand. Such a glorious day, I celebrated by braking another bolt off mounting a radiator fan.
Hertz Donut is offline
The following users liked this post:
tehlonz (05-05-2019)
Old 04-29-2019, 07:04 AM
  #10

Canadian144's Avatar

Join Date: Sep 2012
Location: Toronto
Posts: 201
Received 4 Likes on 4 Posts
Default

This happened to one of my TCT bolts as well, due to the V1 kraftwerks supercharger mounting bracket that shares these holes.

Regardless of the drill or extraction bits I tried, I couldn't get a straight enough angle to extract what was left of the bolt. So, I just pulled the head and sent it to a machine shop to have them freshen everything up.
Canadian144 is online now
