My passenger footwell sub install - Lots of pics!
Here's how I saved my trunk space. I'm not the first to mount the sub down here, but imo, this is one of the better looking ones. It was built strong with the right tools and almost no leg room was lost. There is zero loss on the floor and just under 2 "up" on the firewall.
Ie - zero loss where your heel would go and about 2" where you toes would be.
All told, we got about 1/2 cube down there and it sounds great powered with about 250 watts.
Stock with foam wedge
Wedge removed, lots more airspace needed
Safety first

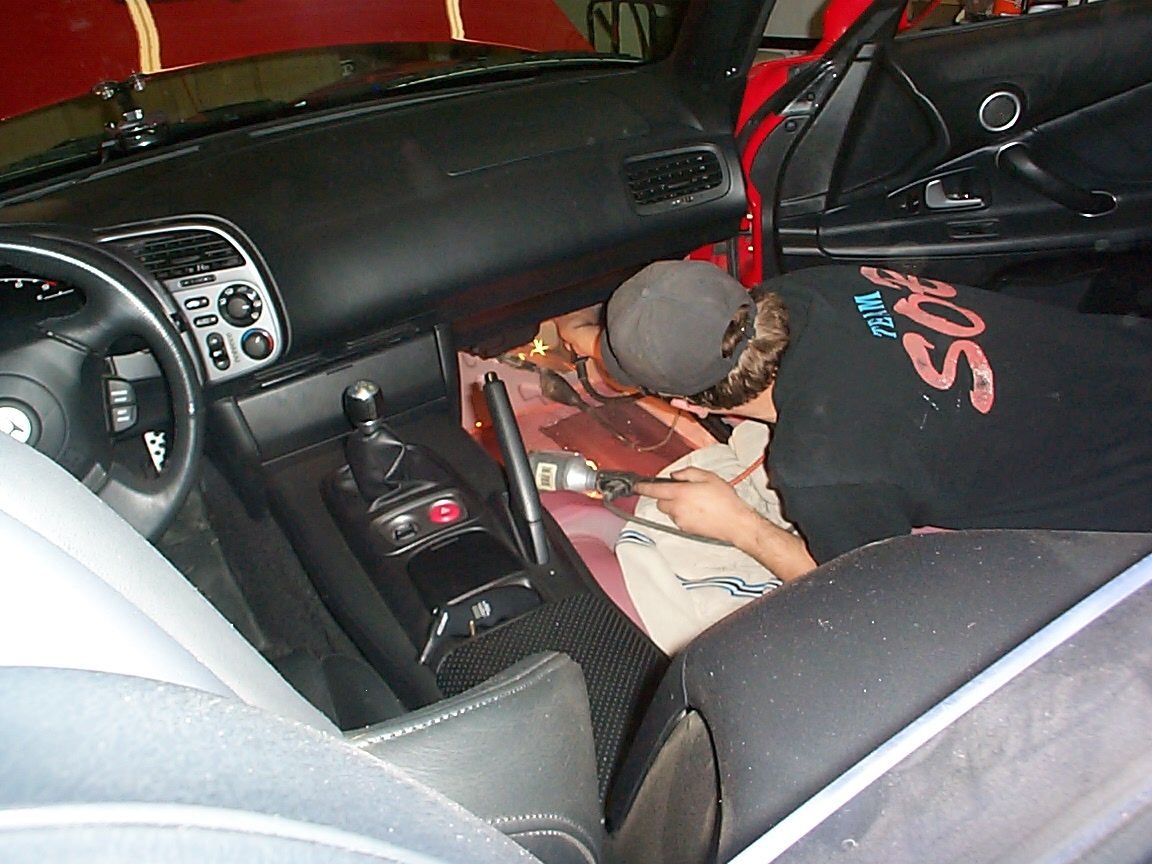

There's only one way to do it - plasma cutter

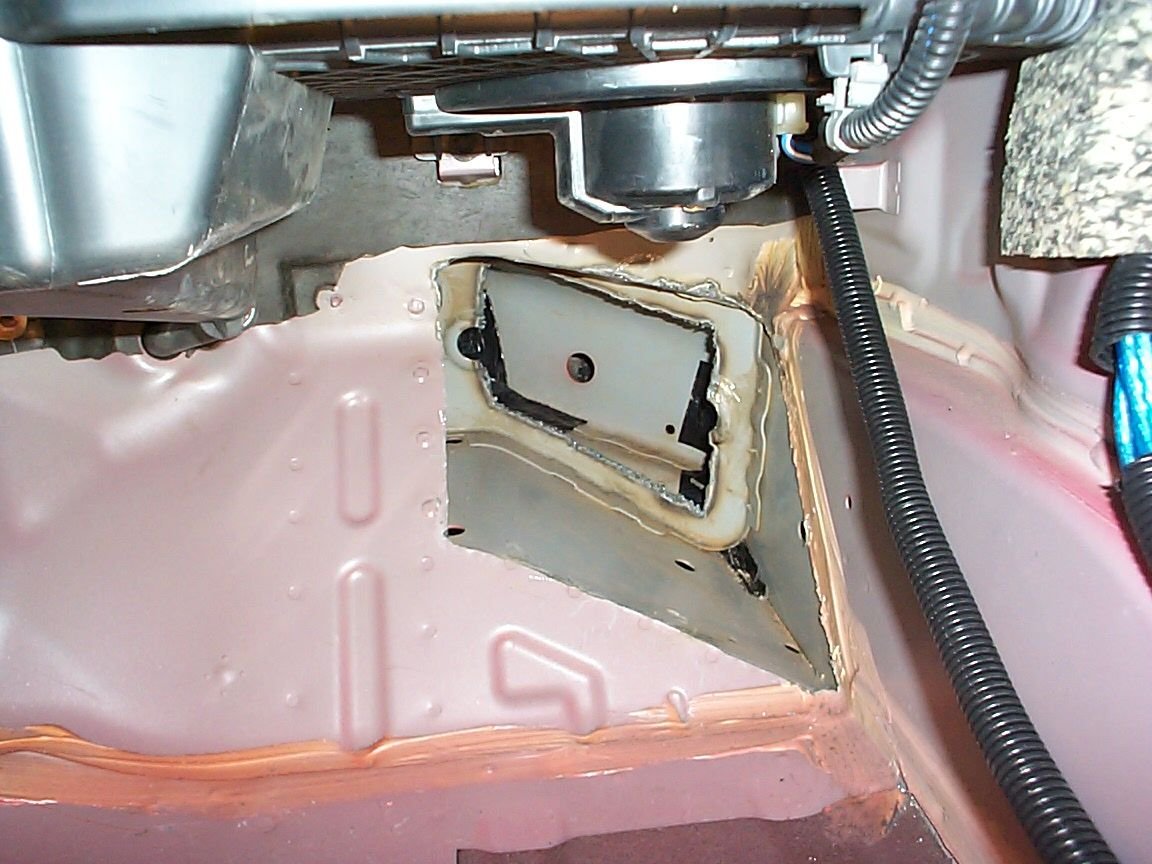

Peekaboo!
And a little bit more...
Time to coat this to prevent rust and damp vibrations, resonances, etc.

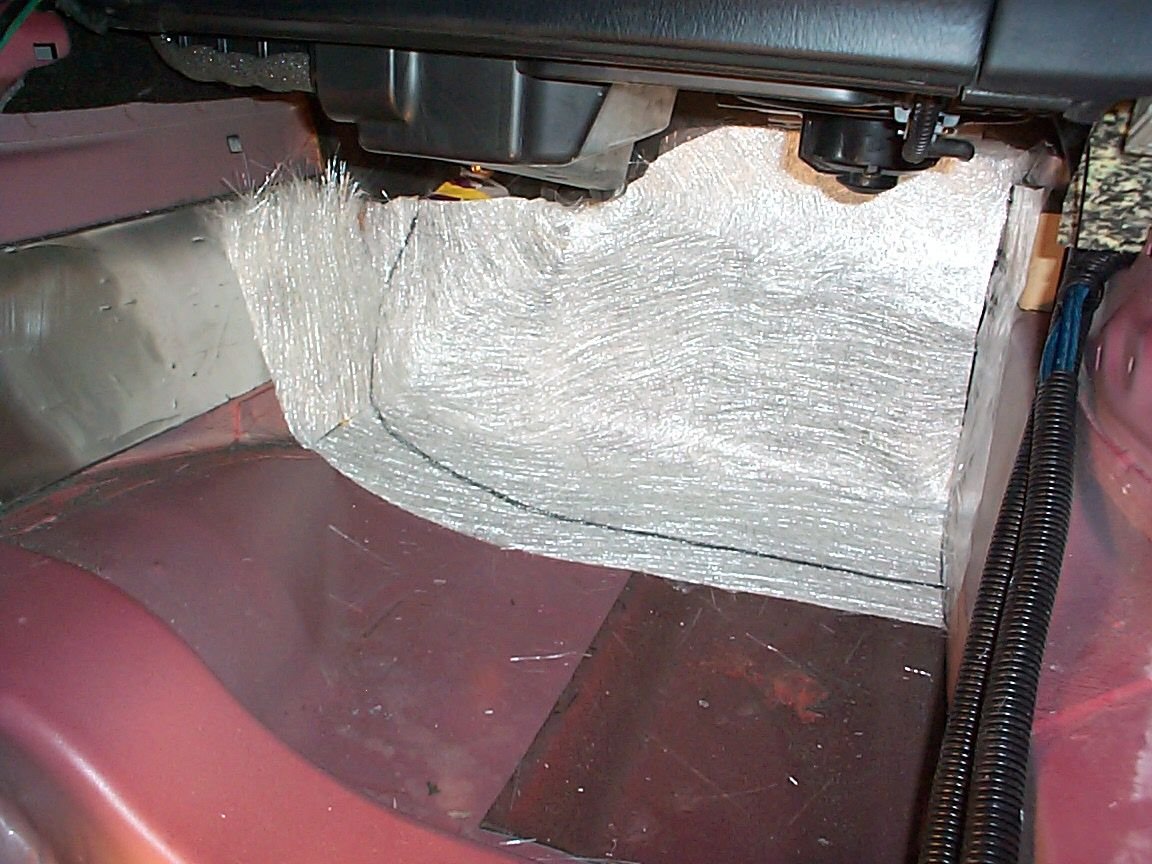

Laying down some fiberglass mat.
Add resin, wait, remove
Cut matching hole
Check the fit
Ie - zero loss where your heel would go and about 2" where you toes would be.
All told, we got about 1/2 cube down there and it sounds great powered with about 250 watts.
Stock with foam wedge
Wedge removed, lots more airspace needed
Safety first
There's only one way to do it - plasma cutter
Peekaboo!
And a little bit more...
Time to coat this to prevent rust and damp vibrations, resonances, etc.
Laying down some fiberglass mat.
Add resin, wait, remove
Cut matching hole
Check the fit
#2
Registered User
Thread Starter
Join Date: Jun 2003
Location: Lethbridge, AB
Posts: 417
Likes: 0
Received 0 Likes
on
0 Posts

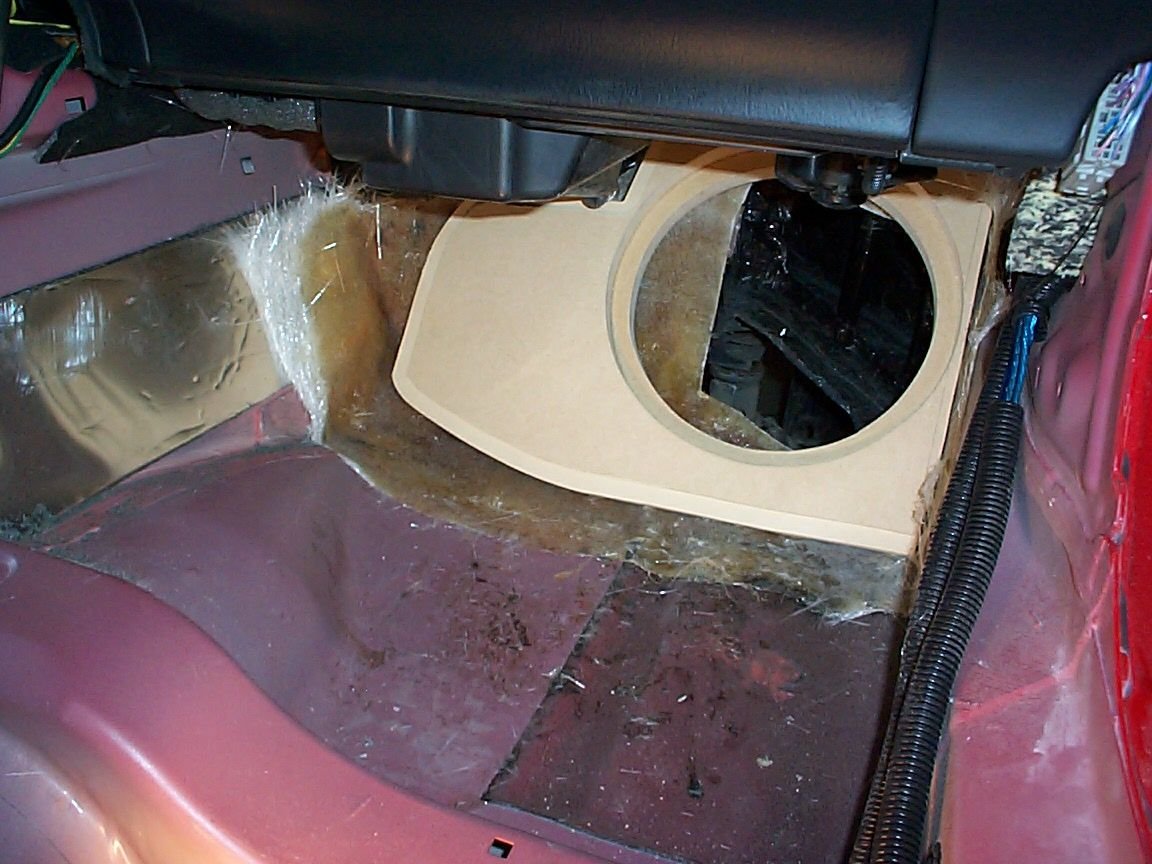

Add a countersunk baffle
