Talking AP1 Build with Kraftwerks Kit

Hello,

I just thought I'd start a progress thread since it's becoming quite the project. I initially had the Kraftwerks v2 installed with the 38-91/ 90mm pulley on AEM V2 for about over a year and dyno'd at 460/300 on E85 and 432/275 on 91. I started to do some changes/upgrades a couple months ago with Rich @ VRF_Design (tuner and fabricator). He mainly works on MR2s but he was happy to take on this project. It was only supposed to be a new intake pipe, engine management, injectors and flex tune but it got a little crazy..

Upgrades;
  • Rotrex C38-92
  • Link EMU
  • Increasing my piping size for the charge pipes (3" on hot side and 3.5" on cold side) using Titanium
  • CSF Radiator with dual Spal 10" fans
  • Oil catch can
  • Race Port BOV
  • New engine harness

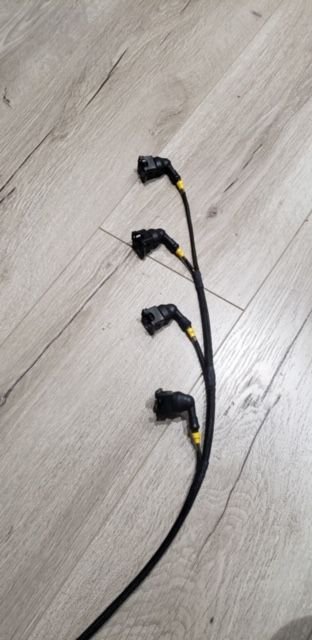

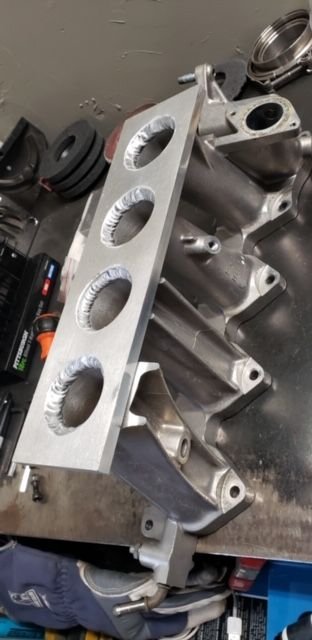

  • Custom intake manifold designed/made with a larger throttle body. **The intake manifold is just our prototype for now and we'll have any re-designs done, if necessary.**

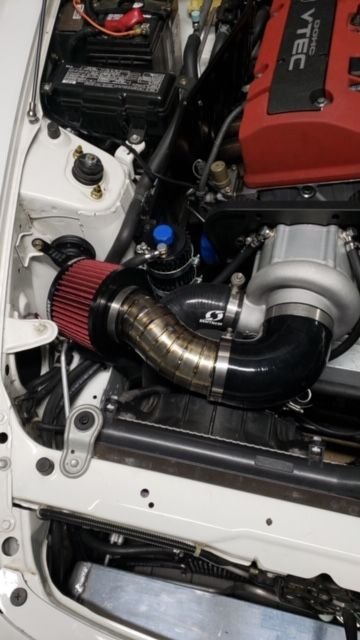

The intake manifold is being powder coated right now so I am waiting for that to come back. The piping should hopefully be done by the end of the week. Still waiting on the machinist to finish the fan shroud as well. I'll continue to update the thread as we make progress! I'll post up some photos of the previous engine bay set up and the progress so far.











Last edited by S2DALOO; 02-19-2019 at 09:27 AM. Reason: Revised upgrade list
S2DALOO is offline
Old 02-18-2019, 02:32 PM
  #2

RAIN H8R's Avatar

Join Date: Dec 2007
Location: Waukesha, WI
Posts: 4,588
Received 37 Likes on 32 Posts
Default

Nice manifold! in for results!
RAIN H8R is offline
The following users liked this post:
S2DALOO (02-18-2019)
Old 02-18-2019, 03:48 PM
  #3

Join Date: Feb 2008
Location: Melbourne
Posts: 538
Received 7 Likes on 7 Posts
Default

WOW looking good mate! That throttle body looks HUGE! I have a 74mm Skunk 2 and yours easily looks like 80-85mm I hope the accelerator pedal is not to sensitive at low Rpms!
I'm guessing you're running a Walbro 450? Injector Dynamic ID1300's?

I would suggest you run a CAI from down from inside the front bar with the largest stainless steel filter you can fit on your intake pipe. Then cut the brake ducts as large as possible (without it looking stupid) so that air pressurises the filter intake location, this is what I am doing for my 500hp Turbo set up.
MARK AUS S2K is offline
Old 02-18-2019, 09:29 PM
  #4
Registered User
Thread Starter

Join Date: Oct 2016
Posts: 14
Received 3 Likes on 3 Posts
Default

Originally Posted by MARK AUS S2K View Post
WOW looking good mate! That throttle body looks HUGE! I have a 74mm Skunk 2 and yours easily looks like 80-85mm I hope the accelerator pedal is not to sensitive at low Rpms!
I'm guessing you're running a Walbro 450? Injector Dynamic ID1300's?

I would suggest you run a CAI from down from inside the front bar with the largest stainless steel filter you can fit on your intake pipe. Then cut the brake ducts as large as possible (without it looking stupid) so that air pressurises the filter intake location, this is what I am doing for my 500hp Turbo set up.
Haha yeah that throttle body is huge.. plan was to go 80mm but my tuner wants to see how a 101mm does since he had an extra on hand. We put on the cnc’d adapter plate and slapped that baby on lol. If it’s too much then we’ll put on the 80mm.

Yeah I have the Walbro 450 with Science of Speeds wire upgrade set up with their flex fuel sensor kit as well. Currently running 1350cc from fuel injector connection.

You have photos you can message me of your intake set up? I’m interested in how that set up looks.
S2DALOO is offline
Old 02-18-2019, 10:25 PM
  #5

Join Date: Feb 2008
Location: Melbourne
Posts: 538
Received 7 Likes on 7 Posts
Default

I haven't actually fabricated my CAI for the turbo but I believe the headlight support will need to be slightly chopped or modified. I noticed the S2000 world time attack cars have this type of set up so it must make a difference.
MARK AUS S2K is offline
Old 02-19-2019, 01:04 PM
  #6

baZurk's Avatar

Join Date: May 2012
Location: SOMD
Posts: 4,263
Likes: 0
Received 1 Like on 1 Post
Default

Intake manifold looks great, love the execution of that. I'd like to see some back to back runs 75mm vs that massive 101mm throttle body.
baZurk is offline
Old 02-19-2019, 04:28 PM
  #7
Registered User
Thread Starter

Join Date: Oct 2016
Posts: 14
Received 3 Likes on 3 Posts
Default

Originally Posted by baZurk View Post
Intake manifold looks great, love the execution of that. I'd like to see some back to back runs 75mm vs that massive 101mm throttle body.
Thank you! The intake manifold came out great and a lot better than I expected. Excited to see it powder coated in Gloss Black but I may leave the second one we're making in it's raw finish as it looks great as is.

Hopefully I'll get the chance to get some numbers with the 101mm vs the 80mm! If I do, I'll share that on this post.
S2DALOO is offline
Old 02-20-2019, 05:28 AM
  #8

baZurk's Avatar

Join Date: May 2012
Location: SOMD
Posts: 4,263
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by S2DALOO View Post
Thank you! The intake manifold came out great and a lot better than I expected. Excited to see it powder coated in Gloss Black but I may leave the second one we're making in it's raw finish as it looks great as is.

Hopefully I'll get the chance to get some numbers with the 101mm vs the 80mm! If I do, I'll share that on this post.
Appreciate that man!
baZurk is offline
Old 02-20-2019, 06:07 AM
  #9

Join Date: Oct 2015
Posts: 73
Received 3 Likes on 3 Posts
Default

Awesome! I don't know if you have been following our threads on the KW kit revisions? Did you upgrade all the hardware to ARP bolts and does your KW kit have the revised VTEC Bracket??
Code is offline
Old 02-21-2019, 06:50 AM
  #10
Registered User
Thread Starter

Join Date: Oct 2016
Posts: 14
Received 3 Likes on 3 Posts
Default

Originally Posted by Code View Post
Awesome! I don't know if you have been following our threads on the KW kit revisions? Did you upgrade all the hardware to ARP bolts and does your KW kit have the revised VTEC Bracket??
Thank you! Yeah, I upgraded the vtec solenoid bolts after reading about them from an older KW thread. I also did have the revised VTEC Bracket sent out to me so I have that on there as well.
S2DALOO is offline
