Success - 600 W Corvette Brushless Fan
I finished my 600 watt brushless Corvette fan swap today. I went for a nice drive around town. Once the fan starts, the coolant temperature doesn't move. This is a huge difference compared with my old 14" PTuning fan. It would overheat when driving around Atlanta. I suspect this was a combination of elevation + heat + air conditioner use + giant Full Race intercooler. I loved the fit and finish of that kit, but it lacked the flow that these brushless fans have.
I've put pictures here and a video showing the fan starting. The pictures should provide a good idea of how it's mounted.
https://www.icloud.com/sharedalbum/#B0s59UlCq2xysU
Why a brushless fan?
AC Delco 15-81914 is a 14" fan with a radiator size and fan shroud very similar to the S2000 (designed for the Corvette and was sold as an upgrade by GMPP before being made standard equipment). It's ~$200 online. It comes with a 600 watt motor. I believe this may be the most powerful, highest flowing single 14" fan that's available.
To mount it, trim the shroud by ~1/2" all around until it's flush with the flat piece on either side. Cut the large mounting piece at the top so that it fits around the factory mounting points. A simple strap of steel can retain the top. At the bottom, I used a 3/8" sheet of plastic with nutserts. This makes up the required height difference from the factory mounting points to the bottom of the shroud. I also cut off a mounting point near the bottom radiator hose, but this was not necessary. I would not cut this again.
To power it, I ordered the following
SPL-SBL-TS-HARN Spal SBL-TS-HARN Plus or Nuova Series Brushless Fan Harness Connects To SBL-YAZ-PT10 And Your Sensor
SPL-SBL-TS02 SPAL 3/8" NPT Thread Temperature Sensor For Old Style Nuova Brushless Fans 165F Off - 185F On
SPL-SBL-YAZ-PT10 Spal SBL-YAZ-PT10 Plus Or Nuova Series Brushless Fan Pigtail Harness Kit Connects To SBL-TS-HARNT
2-pin weatherpack to connect the override trigger and temp sensor ground to the PTuning harness. Maxifuse holder 50 amp maxifuse Mishimoto temp sensor adapter 3/8" NPT drill and tap set
The Mishimoto adapter needs to be drilled and tapped for 3/8" NPT and you need to replace hose clamps with ones that fit. The Mishimoto ones are too small.
For the harness, I tapped into my boost control solenoid +12v keyed for powering the temperature sensor and the PTuning wiring harness for the override. This override control bypasses the SPAL temperature sensor's PWM control and commands 100% fan. I use this when the AC is on or when the factory temperature switch is triggered as a safety.
How much plastic to remove from shroud.
With 38" plastic spacer.

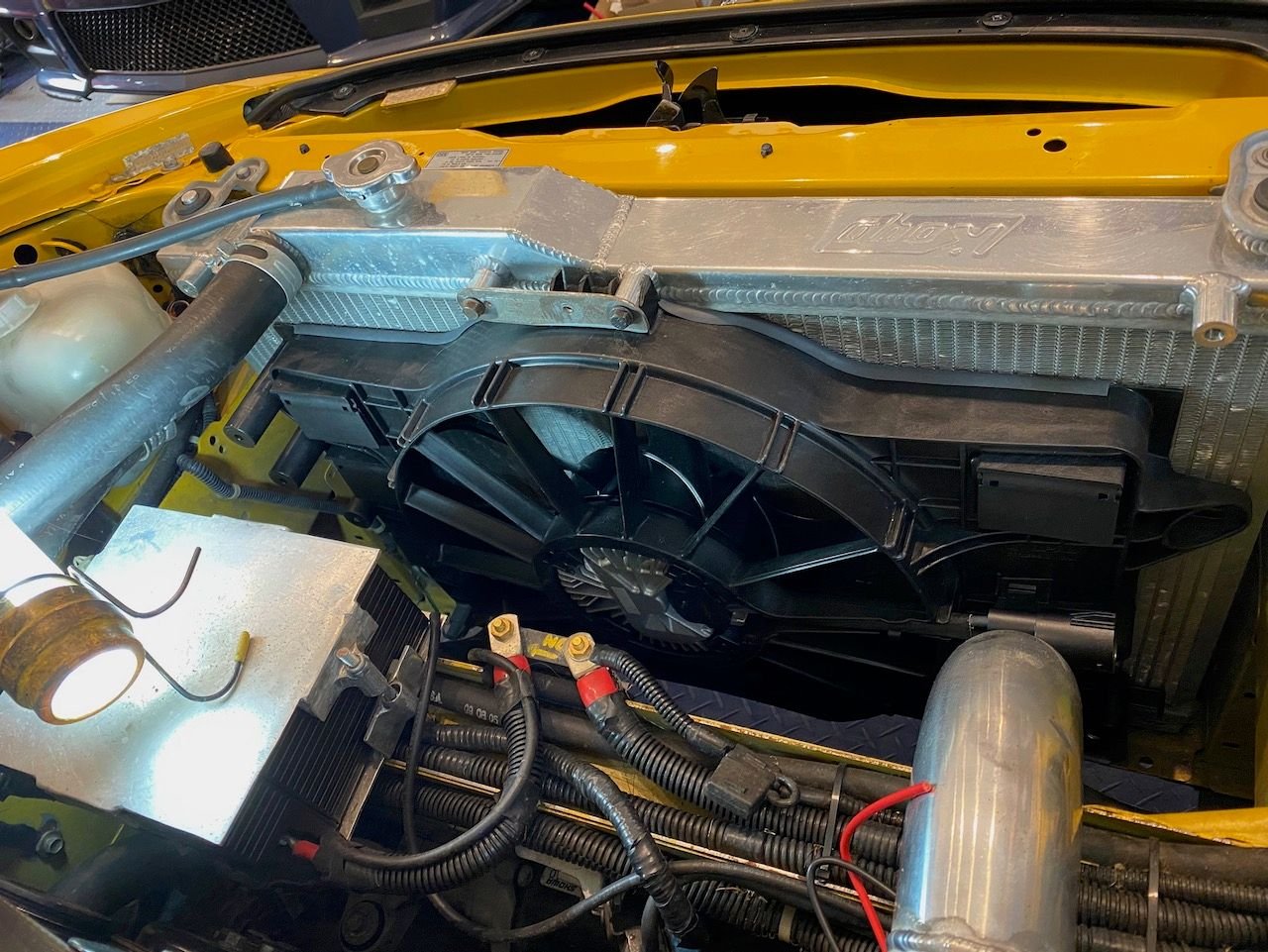

Mounted to factory mounting points.

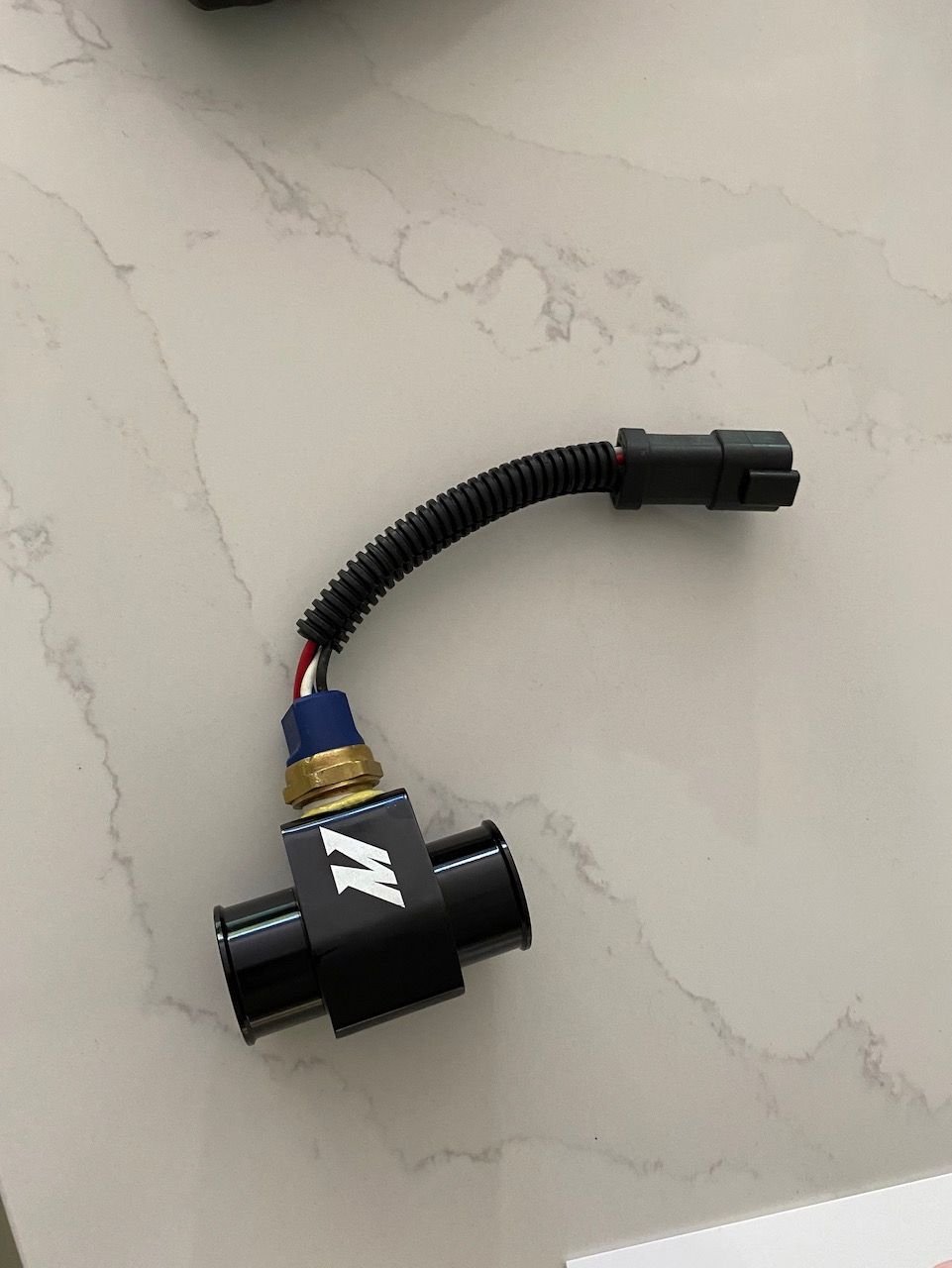

Mishomoto adapter with SPAL temperature controller.
In-process.

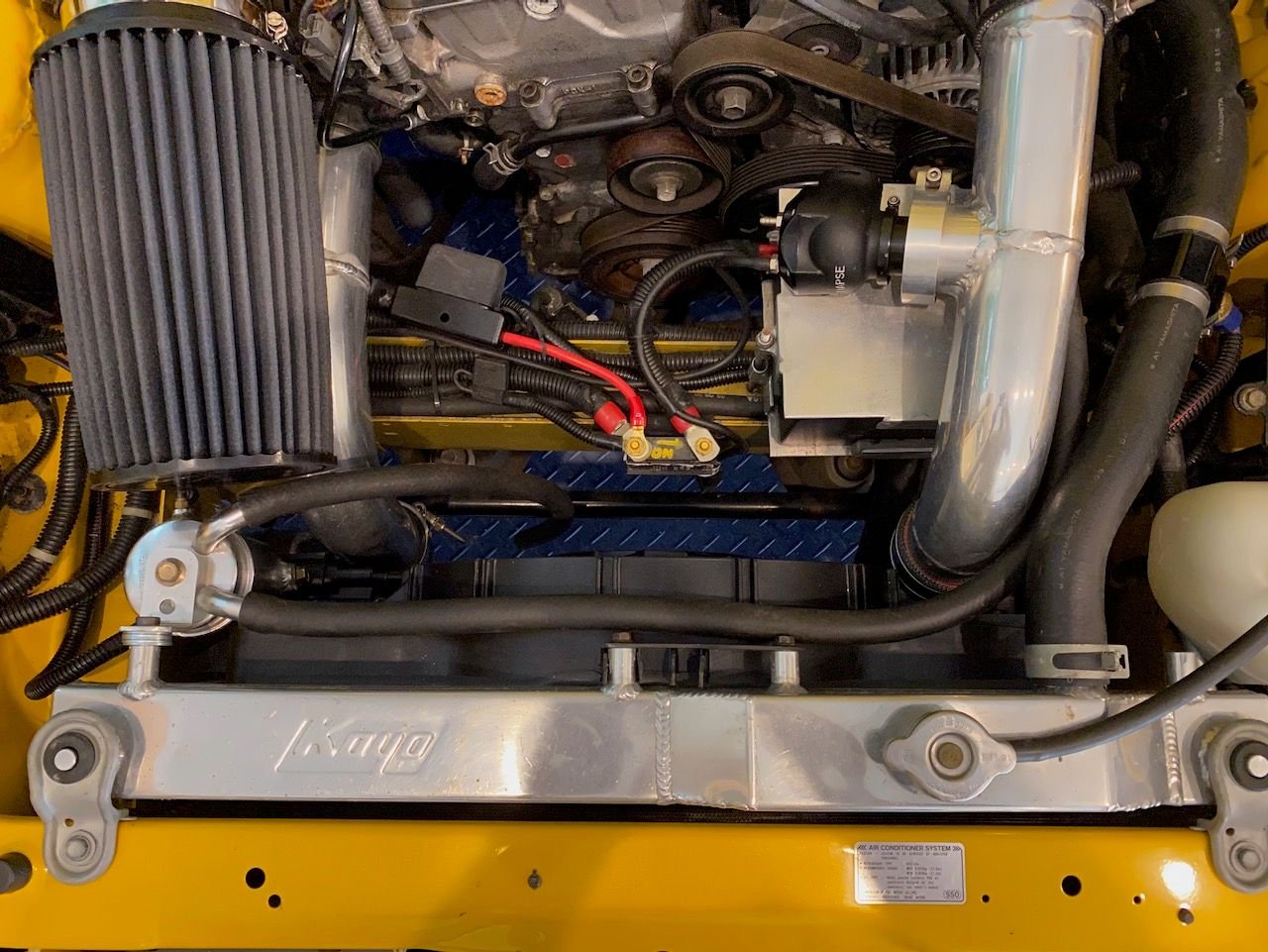

Final install
Tim
I've put pictures here and a video showing the fan starting. The pictures should provide a good idea of how it's mounted.
https://www.icloud.com/sharedalbum/#B0s59UlCq2xysU
Why a brushless fan?
- PWM fan speed control - the fan only runs as quickly as necessary to cool the car.
- Soft start - traditional fans have large inrush current. You see/hear the impact when your car stumbles and tries to stall when the fan starts. With a brushless fan, there is absolutely no change in idle speed.
- GM factory parts = increased durability/reliability
- This fan was designed for track use with the Z06 Corvette. A turbocharged F22C is no big deal.
- The cooling fan looks like a factory fan.
AC Delco 15-81914 is a 14" fan with a radiator size and fan shroud very similar to the S2000 (designed for the Corvette and was sold as an upgrade by GMPP before being made standard equipment). It's ~$200 online. It comes with a 600 watt motor. I believe this may be the most powerful, highest flowing single 14" fan that's available.
To mount it, trim the shroud by ~1/2" all around until it's flush with the flat piece on either side. Cut the large mounting piece at the top so that it fits around the factory mounting points. A simple strap of steel can retain the top. At the bottom, I used a 3/8" sheet of plastic with nutserts. This makes up the required height difference from the factory mounting points to the bottom of the shroud. I also cut off a mounting point near the bottom radiator hose, but this was not necessary. I would not cut this again.
To power it, I ordered the following
SPL-SBL-TS-HARN Spal SBL-TS-HARN Plus or Nuova Series Brushless Fan Harness Connects To SBL-YAZ-PT10 And Your Sensor
SPL-SBL-TS02 SPAL 3/8" NPT Thread Temperature Sensor For Old Style Nuova Brushless Fans 165F Off - 185F On
SPL-SBL-YAZ-PT10 Spal SBL-YAZ-PT10 Plus Or Nuova Series Brushless Fan Pigtail Harness Kit Connects To SBL-TS-HARNT
2-pin weatherpack to connect the override trigger and temp sensor ground to the PTuning harness. Maxifuse holder 50 amp maxifuse Mishimoto temp sensor adapter 3/8" NPT drill and tap set
The Mishimoto adapter needs to be drilled and tapped for 3/8" NPT and you need to replace hose clamps with ones that fit. The Mishimoto ones are too small.
For the harness, I tapped into my boost control solenoid +12v keyed for powering the temperature sensor and the PTuning wiring harness for the override. This override control bypasses the SPAL temperature sensor's PWM control and commands 100% fan. I use this when the AC is on or when the factory temperature switch is triggered as a safety.
How much plastic to remove from shroud.
With 38" plastic spacer.
Mounted to factory mounting points.
Mishomoto adapter with SPAL temperature controller.
In-process.
Final install
Tim
