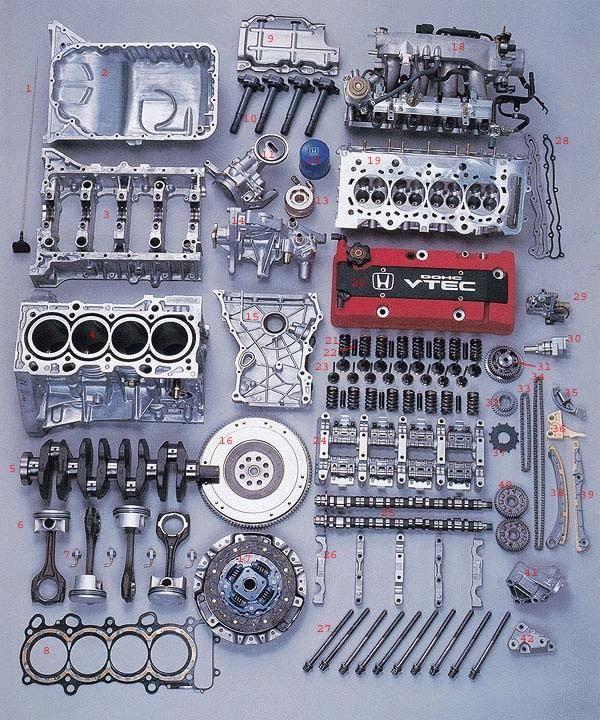

I downloaded this picture from this board a while ago and want to know if anyone has a higher resolution version of this pict. Also does anyone have the part names to go with the numbers annotated on the picture.

thanx...



From what I can see....

1. Oil Dip Stick
2. Oil Pan
3. Lower Block (Cradle)
4. Bare Block
5. Crankshaft
6. Pistons & Rods
7. Oil Jets
8. Head Gasket
9. Oil Pan Baffle
10. Ignition Coils
11. Oil Pick-up & Pump Ass.
12. Oil Filter
13. Oil Cooler (Sandwich Plate)
14. Water Pump and Thermostat Housing
15. Timing Chain Cover
16. Flywheel
17. Clutch Disc & Pressure Plate
18. Intake Manifold
19. Cyclinder Head
20. Valve Cover
21. Valve Springs
22. Valve Guides
23. Valves
24. Rocker Arm Ass.
25. Camshafts
26. Camshaft Holders
27. Head Bolts
28. Cyclinder Head Side Cover & Gasket
29. VTEC Solenoid
30. Timing Chain Auto-Tensioner
31. Idler Gear
32. ?
33. Oil Pump Chain
34. Timing Chain
35. ?
36. Oil Pump Chain Guide
37. Crankshaft Position Sensor Ring
38. Tensioner Arm
39. Timing Chain Guide
40. Camshaft Gears
41. ?
42. ?

Sorry, I can't help you with the "Higher Resolution" part. I'm seeing this picture for the first time.



I think 41 and 42 are either engine mount brackets or a/c alternator brackets.
