Default CR Trunk reinforcement

There's been quite a few requests for this, so I took some (slightly better) pictures today.

The CR trunk has a different part number from the non-CR trunk, and it is due to reinforcement to supplement the CR wing.

Please excuse the picture quality, they were taken with my phone

Whole Trunk. All the black things lining the trunk are supports for the trunk; every single one has left a mark on either sheet metal or a support that corresponds to the one on the trunk.
Name:  IMAG0700Medium.jpg
Views: 1929
Size:  75.9 KB

Right side top reinforcement
Name:  IMAG0703Medium.jpg
Views: 1296
Size:  51.8 KB

Right side top reinforcement support (you can see the marks from the top piece)
Name:  IMAG0702Medium.jpg
Views: 1256
Size:  44.6 KB

How the top reinforcement and the support line up
Name:  IMAG0701Medium.jpg
Views: 1328
Size:  68.7 KB

Support at the "bottom" (end) of the trunk
Name:  IMAG0705Medium.jpg
Views: 1210
Size:  68.0 KB

And the mark it leaves on the bumper
Name:  IMAG0704Medium.jpg
Views: 1216
Size:  82.0 KB

left side top reinforcement support (Lighting makes the grooves the top part leaves clearer; this piece is flat brand new!)
Name:  IMAG0706Medium.jpg
Views: 1218
Size:  26.9 KB

And the reinforcement that made the marks
Name:  IMAG0707Medium.jpg
Views: 1210
Size:  39.2 KB

Trunk reinforcement (you only see a little piece here)
Name:  IMAG0708Medium.jpg
Views: 1203
Size:  51.3 KB

You can sort of see ribbing in the hole here.


Same hole, better picture.
Name:  IMAG0710Medium.jpg
Views: 1190
Size:  35.7 KB

Different angle of ribbing underneath the skin.
Name:  IMAG0711Medium.jpg
Views: 1190
Size:  57.4 KB

Same picture but zoomed out so you can see which hole I took it through.
Name:  IMAG0712Medium.jpg
Views: 1191
Size:  55.9 KB

Another picture, different hole. The reinforcement is very obvious in this picture.
Name:  IMAG0713Medium.jpg
Views: 1224
Size:  37.0 KB

And, zoomed out again for perspective
Name:  IMAG0714Medium.jpg
Views: 1231
Size:  50.3 KB

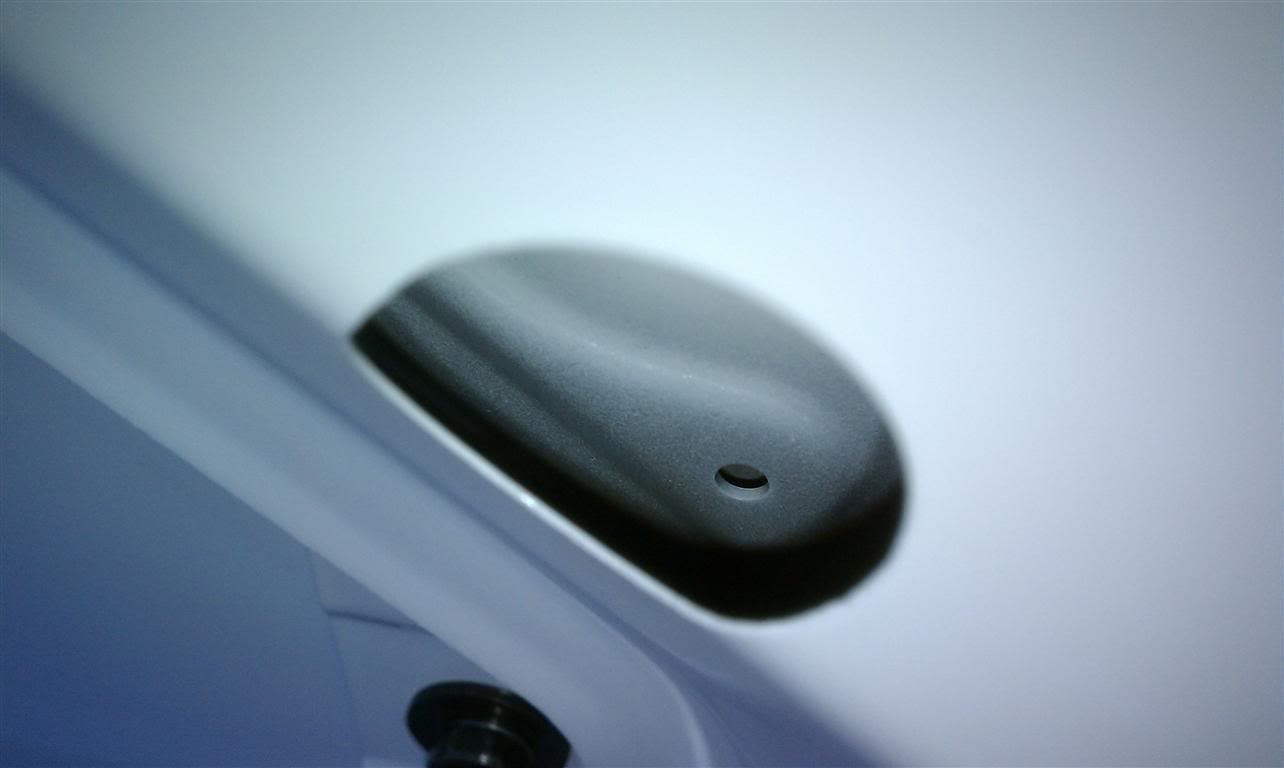

Another picture. I have no idea why that hole is there.


And, zoomed out.
Name:  IMAG0716Medium.jpg
Views: 1198
Size:  43.6 KB

And, a few pictures of my bumper. The wing pushes down hard enough where the bumper is now mis-aligned. The support doesn't actually touch the bumper when the car is parked....
Name:  IMAG0717Medium.jpg
Views: 1220
Size:  48.7 KB
Name:  IMAG0718Medium.jpg
Views: 1206
Size:  43.2 KB
psychoazn is offline
Old 11-28-2010, 04:29 PM
  #2
Registered User

cantsleep's Avatar

Join Date: May 2008
Location: All over the Socal
Posts: 1,914
Likes: 0
Received 0 Likes on 0 Posts
Default

sweeeet!
cantsleep is offline
Old 11-28-2010, 05:24 PM
  #3
Registered User

Join Date: Aug 2009
Posts: 400
Likes: 0
Received 0 Likes on 0 Posts
Default

im just putting this out there but....... car kinda, sorta dirty
flacoloco is offline
Old 11-28-2010, 05:27 PM
  #4

TheMuffinMan's Avatar

Join Date: Mar 2009
Posts: 1,820
Received 4 Likes on 3 Posts
Default

I've already acquired a trunk and wing and need those side support pieces for the car that you name "left/right side top reinforcement"

Anyone know where these are available? I couldn't find it on the exploded diagrams from HAP
TheMuffinMan is offline
Old 11-28-2010, 06:05 PM
  #5
Member
Thread Starter

psychoazn's Avatar

Join Date: Sep 2004
Location: Orange County, CA
Posts: 6,223
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by TheMuffinMan,Nov 28 2010, 06:27 PM
I've already acquired a trunk and wing and need those side support pieces for the car that you name "left/right side top reinforcement"

Anyone know where these are available? I couldn't find it on the exploded diagrams from HAP
You need to look at 08 and 09 CR with or without AC to see it.

Here's the link:

http://www.hondaautomotiveparts.com/auto/j...cgry5=TRUNK+LID

The parts you want are 13, 14, and 15, I think. You'll also need to get the bolts to hold it on (or go to home depot)
psychoazn is offline
Old 11-28-2010, 07:34 PM
  #6

TheMuffinMan's Avatar

Join Date: Mar 2009
Posts: 1,820
Received 4 Likes on 3 Posts
Default

Ah damn, ok I just need #14, I was looking in the right place but did not realize that is the part I needed. After reading the description that is exactly what I need. The trunk when I purchased it thankfully already had the two L shaped bumpers so all I needed was the additional bracing on the car itself.

I'm guessing it's just double sided tape on the back of it to hold it in place?
TheMuffinMan is offline
Old 11-28-2010, 09:07 PM
  #7
Member
Thread Starter

psychoazn's Avatar

Join Date: Sep 2004
Location: Orange County, CA
Posts: 6,223
Likes: 0
Received 0 Likes on 0 Posts
Default

I have no idea, but there are no bolts holding it on

It is basically a piece of rubber.
psychoazn is offline
Old 11-28-2010, 09:35 PM
  #8
Registered User

mister x's Avatar

Join Date: Jun 2006
Location: Honolulu
Posts: 1,799
Likes: 0
Received 0 Likes on 0 Posts
Default

Great pics, makes me wonder about guys just slapping a wing on a non-CR and calling it a day. Honda put some engineering into that set up.
mister x is offline
Old 11-29-2010, 09:54 AM
  #9
Moderator

#172CR's Avatar

Join Date: Aug 2008
Location: North Portland, OR
Posts: 6,870
Received 15 Likes on 11 Posts
Default

Good photos Mike, I now have a reference when people ask for pics
#172CR is offline
Old 07-25-2012, 07:23 AM
  #10

nicholastjs's Avatar

Join Date: Sep 2011
Posts: 425
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by psychoazn View Post
I have no idea, but there are no bolts holding it on

It is basically a piece of rubber.
I'm looking for the reinforcement plate that goes between the trunk skin and the frame. Do you know if those can be purchased separately?

Thanks,
Nicholas
