I'm doing a conversion from AP1 headlights to AP2... problem is...

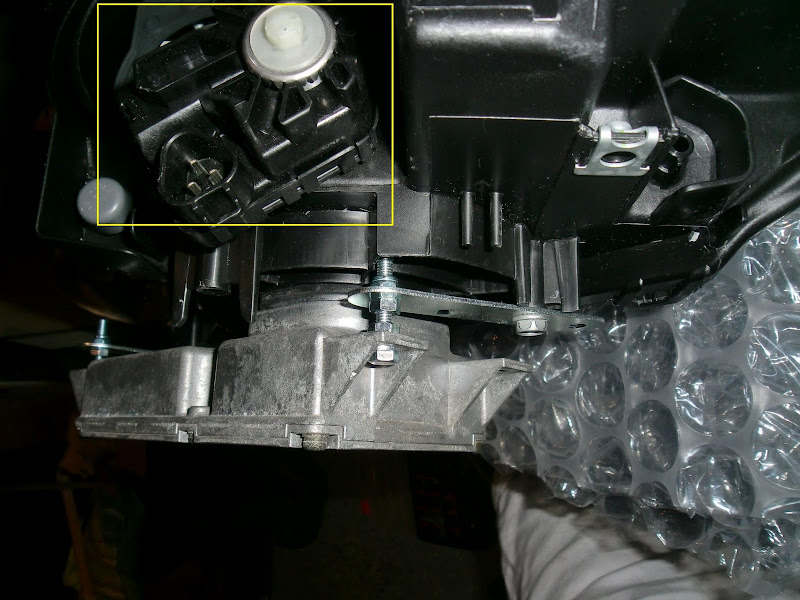

my AP1 headlight adjusters are a rectangular socket... where as the AP2's are triangular... see pics.

I would like convert the plug having wiring from the AP1 male socket wired directly to the AP2 female socket... problem is...

Would anyone know what corresponds to which wires? or is there a diagram available?

AP1


AP2



you'll need to get the #14 in the pic, pigtail for the ap2 ballast. if you need them, PM me. tks

http://www.hondapartsdeals.com/hpa/zoom_im...ge&x=1107&y=553



nice conversion. Where did you get the headlights from?





auto adjusting headlights? count me in! lol



well, i clipped my front end, so during the repair, the repairers agreed to change to AP2 headlights and bumper so they were ordered from Japan. You guys don't get this on your headlights? :S



#14 is the wiring from the car to the ballast. This is different from this.



Yeah that number 14 wire is for the ballast (which you will need to swap too) but our headlights do not have that. We just have a tiny little silver knob, and thats it. I'm not really sure what to tell you man.



well i'm using an ap1 ballast... anyway, USDM modes are probably like this:
