Help identifying a part!


Old 03-13-2019, 11:55 AM
  #1
Registered User
Thread Starter

Join Date: Oct 2016
Posts: 12
Likes: 0
Liked 0 Times in 0 Posts
Default Help identifying a part!

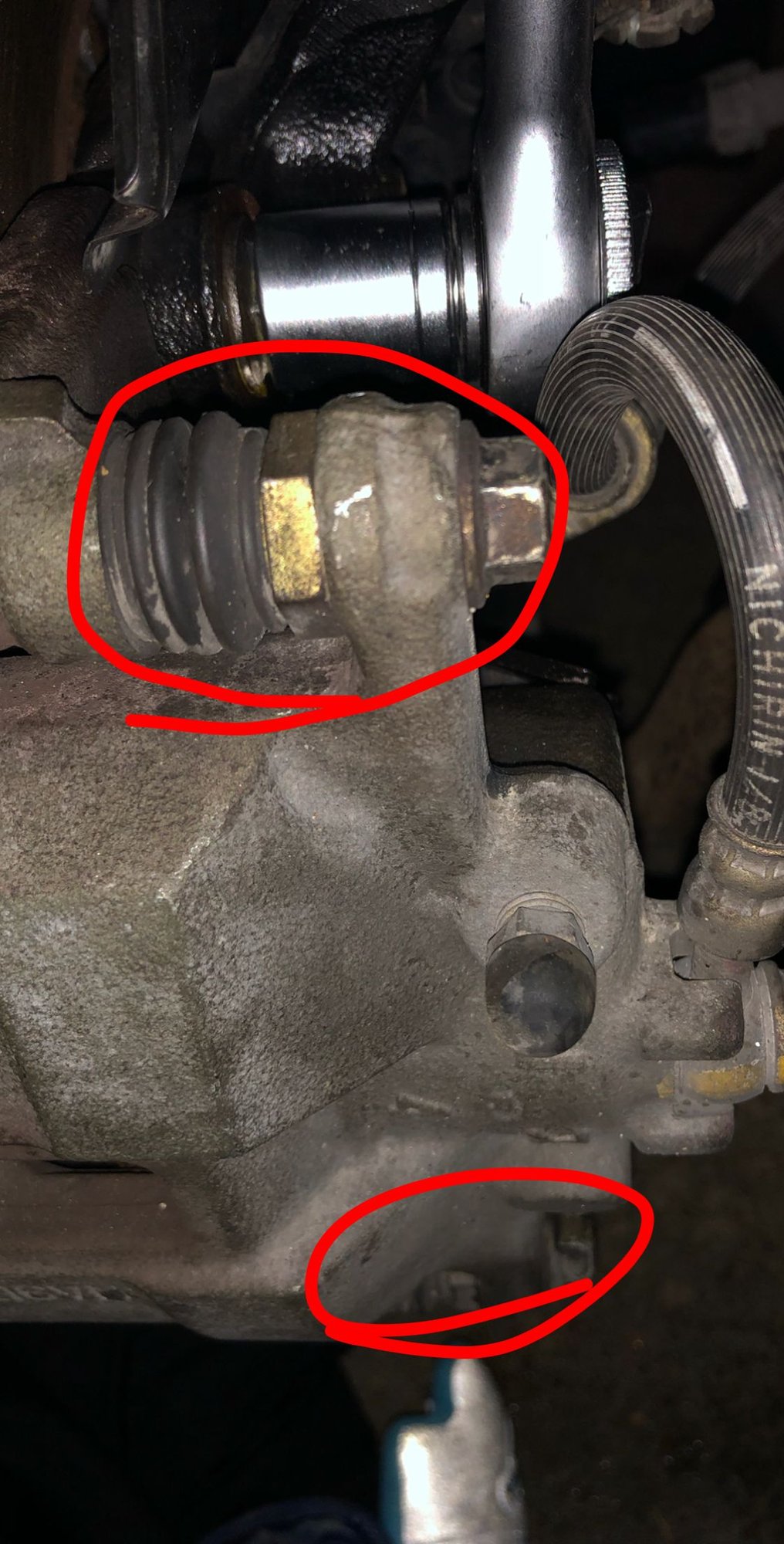

So the spring came up alot sooner than expected but to make a long story short, the front driver side wheel stud broke and my brother and I fixed it in the garage having a few drinks. Attached is the part in question, I wouldn't be surprised if one of us tightened/loosened it on accident but I have no clue what is is or does. I tried looking through parts diagrams and I found P/N's but no description anywhere. The reason im questioning it is because after my brother and I fixed the stud, something began dragging on the rotor. Ill attach another picture of the culprit that dragging but it is a part of the rotor so I think something got misaligned somewhere.



Chr1s7ian is offline
Old 03-13-2019, 12:04 PM
  #2
Registered User

Join Date: Apr 2017
Posts: 22
Likes: 0
Liked 0 Times in 0 Posts
Default

Are you pointing at the caliper pin? you should also check the rotor set screw that holds it onto the hub, if that isn't seated right it can cause a dragging noise.
WheresJc is offline
Old 03-13-2019, 12:15 PM
  #3
Registered User
Thread Starter

Join Date: Oct 2016
Posts: 12
Likes: 0
Liked 0 Times in 0 Posts
Default

I put them out of order but I’m wondering what the things clicked are and I’m not pointing at anything, it was just a really awkward camera angle lol
Chr1s7ian is offline
Old 03-13-2019, 01:14 PM
  #4
Site Moderator

Manga_Spawn's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 12,294
Liked 122 Times in 109 Posts
Default

It is the bolts that hold the caliper to the bracket. If you were changing your brake pads you'd remove one or both of those bolts to slide the caliper up so you could replace the pads.
Manga_Spawn is online now
Old 03-13-2019, 02:23 PM
  #5
Community Organizer

s2000Junky's Avatar

Join Date: Jun 2007
Posts: 28,221
Liked 217 Times in 205 Posts
Default

The caliper is two pieces and the main part that holds the pads floats over the rotor, the bolt you circled with the rubber boot is where is floats over, this should not be removed but be free and move by hand when the caliper is removed from the rotor. It looks like in your dark bad pic its possibly jammed up and the outer portion of the caliper is grinding on the rotor. The bolt circled should not need to be touched. Removed the caliper again and make sure you get movement there back and forth and nothing hanging up.

Last edited by s2000Junky; 03-13-2019 at 02:26 PM.
s2000Junky is offline
Old 03-13-2019, 02:23 PM
  #6
Community Organizer

s2000Junky's Avatar

Join Date: Jun 2007
Posts: 28,221
Liked 217 Times in 205 Posts
Default

Originally Posted by Manga_Spawn View Post
It is the bolts that hold the caliper to the bracket. If you were changing your brake pads you'd remove one or both of those bolts to slide the caliper up so you could replace the pads.
No
s2000Junky is offline
Old 03-13-2019, 05:16 PM
  #7
Registered User

Join Date: Jun 2018
Posts: 438
Liked 86 Times in 66 Posts
Default

Originally Posted by s2000Junky View Post
No
why? removing the bottom bolt and lifting is a quick pad swap at the track? (we're talking pads not rotors and pads) whats wrong with that? Am I missing something?
Deckoz is offline
Old 03-13-2019, 05:30 PM
  #8
Community Organizer

s2000Junky's Avatar

Join Date: Jun 2007
Posts: 28,221
Liked 217 Times in 205 Posts
Default

Originally Posted by Deckoz View Post
why? removing the bottom bolt and lifting is a quick pad swap at the track? (we're talking pads not rotors and pads) whats wrong with that? Am I missing something?
Because Magna was confused at which bolts he was looking at. Refer to my previous post. Also both caliper mounting bolts have to be removed and caliper slid entirely off the rotor to clear the pads, but that's not important here.

Last edited by s2000Junky; 03-13-2019 at 05:34 PM.
s2000Junky is offline
Old 03-13-2019, 06:10 PM
  #9
Registered User

Join Date: Jun 2018
Posts: 438
Liked 86 Times in 66 Posts
Default

Originally Posted by s2000Junky View Post
Because Magna was confused at which bolts he was looking at. Refer to my previous post. Also both caliper mounting bolts have to be removed and caliper slid entirely off the rotor to clear the pads, but that's not important here.
gotcha np. thanks Junky.
Deckoz is offline
