Modifry DCI - Only MUTE button works?

Notices
S2000 Electronics Information and discussion related to S2000 electronics such as ICE, GPS, and alarms.

Modifry DCI - Only MUTE button works?


Old 09-04-2018, 12:00 AM
  #1
Registered User
Thread Starter

Kyle's Avatar

Join Date: Jun 2018
Location: Connecticut :(
Posts: 752
Liked 63 Times in 58 Posts
Default Modifry DCI - Only MUTE button works?

So I searched around and found only one other issue like this that was supposedly resolved by a firmware update? Anyways I've gone through all of the troubleshooting tips and I'm not seeing what my issue can be. I've already emailed Bob but I was just wondering if anyone has had the same problem. I couldn't imagine me botching a plug and play affair....but I want to assume I'm doing something wrong first before I blame anything else.

My setup is:

Modifry Wired DCI
Alpine PnP harness (Modifry)
Alpine UTE-73BT HU (other people have the DCI working with this)

So I have everything plugged in and I'm quite certain the DIP switches are in the correct orientation, but the only thing that functions is the MUTE button, and that's only with the mute DIP switch #1 enabled. I get an audible beep from my HU when I press Mute, and it even displays "Mute" on the screen and it does actually mute the volume. Aside from that none of the other buttons work. I've tried ungplugging and plugging things back in to ensure the connections were firmly seated. I power-cycled the DCI after making any changes to the DIP switch settings, I've ensured there's no bent pins anywhere not making a good connection. I also disconnected the purple mute wire to the DCI if by chance my mute switch was bad sending a constant mute signal to the DCI; also a no go.

I'd imagine my last options are to break out the voltmeter and see if the voltages from the dash control green wire are what the DCI needs to be seeing for inputs, as well as checking the pinouts of the PnP connection to make sure everything is in the right location, and maybe try a new 3.5mm jack.

Has anyone else ran into this issue? I feel incredibly stupid as this whole thing was supposed to be by far the simplest radio installation I've ever performed and the fact that it isn't working is really disconcerting lol. I'll tell Bob I'll cover shipping of my entire HU w/ harness and DCI to him to see if he can bench-test it on his end. Hopefully I can get this figured out. Not really in a big hurry because I'm doing quite a bit of maintenance and work to the car right now so it's all apart anyway; just hoping I can get this sorted before the super hot weather breaks.

Here's a pic of my current DIP settings (mute & tap/hold enabled, switches 3&4 in the up/on position for Alpine per the manual)





Last edited by Kyle; 09-04-2018 at 12:02 AM.
Kyle is offline
Old 09-04-2018, 04:49 AM
  #2
oth

Join Date: Sep 2004
Location: NJ USA
Posts: 1,445
Likes: 0
Liked 18 Times in 18 Posts
Default

Make sure the DCI is plugged into the correct port on the back of the headunit - I believe the
microphone jack is right next to the DCI jack. Otherwise, in case you haven't seen them already,
here are Modifry's advanced troubleshooting instructions.
oth is offline
Old 09-04-2018, 11:09 AM
  #3
Registered User

Boosted04S2K's Avatar

Join Date: Mar 2018
Posts: 85
Liked 1 Time in 1 Post
Default

[QUOTE=S2kys;24507237]
So I searched around and found only one other issue like this that was supposedly resolved by a firmware update? Anyways I've gone through all of the troubleshooting tips and I'm not seeing what my issue can be. I've already emailed Bob but I was just wondering if anyone has had the same problem. I couldn't imagine me botching a plug and play affair....but I want to assume I'm doing something wrong first before I blame anything else.

My setup is:

Modifry Wired DCI
Alpine PnP harness (Modifry)
Alpine UTE-73BT HU (other people have the DCI working with this)
[QUOTE]


Is the light going on and off on your mute button? Mute kills everything. Try it in both lit and unlit.
Boosted04S2K is offline
Old 09-04-2018, 03:43 PM
  #4
Registered User
Thread Starter

Kyle's Avatar

Join Date: Jun 2018
Location: Connecticut :(
Posts: 752
Liked 63 Times in 58 Posts
Default

Originally Posted by oth View Post
Make sure the DCI is plugged into the correct port on the back of the headunit - I believe the
microphone jack is right next to the DCI jack. Otherwise, in case you haven't seen them already,
here are Modifry's advanced troubleshooting instructions.
Yeah, I have it plugged into the blue “remote” port

Originally Posted by Boosted04S2K View Post
Is the light going on and off on your mute button? Mute kills everything. Try it in both lit and unlit.

It does go on and off. I actually tried it with the mute wire unplugged, still didn’t work.


Bob got back to me. Next course of action is to check voltage output from my dash controls and see if it’s in-line with proper specs. Will keep this updated
Kyle is offline
Old 09-05-2018, 08:40 AM
  #5
Registered User
Thread Starter

Kyle's Avatar

Join Date: Jun 2018
Location: Connecticut :(
Posts: 752
Liked 63 Times in 58 Posts
Default

So there’s voltage at the module. I measure 4.96 volts which puts me within the 10% range of 4.55 volts with no presses per the advanced troubleshoot guide. The one thing I’m not seeing though is any changes in voltage with the dash buttons being pressed. I assumed the worst and thought my switch assembly was no good. So I plugged the stock radio back in and the controls work as they should. At this point I’m thinking the DCI is bad seeing as my controls still work fine with the stock radio. I emailed bob back with the results; we’ll see what he’s gotta say.



Kyle is offline
Old 09-05-2018, 09:00 AM
  #6
oth

Join Date: Sep 2004
Location: NJ USA
Posts: 1,445
Likes: 0
Liked 18 Times in 18 Posts
Default

If your stock headunit works, then it means the car's harness and dash controls are good (as you know).
Check the PnP adapter harness to make sure the green (dash switch) wire is in the same cavity as the
car's green/red (in case harness was miswired). Then, with DCI disconnected, use your meter to check
ohms between the DCI connector green wire and ground, with one of the dash buttons pressed. If it
doesn't drop to the right value, something's wrong with the adapter harness.
Alternately, you can check for continuity (~0 ohms) between the green wire connection at the DCI end,
and the green wire pin in the 20-pin connector, of the adapter harness itself.
oth is offline
Old 09-05-2018, 10:38 AM
  #7
Registered User
Thread Starter

Kyle's Avatar

Join Date: Jun 2018
Location: Connecticut :(
Posts: 752
Liked 63 Times in 58 Posts
Default

Originally Posted by oth View Post
If your stock headunit works, then it means the car's harness and dash controls are good (as you know).
Check the PnP adapter harness to make sure the green (dash switch) wire is in the same cavity as the
car's green/red (in case harness was miswired). Then, with DCI disconnected, use your meter to check
ohms between the DCI connector green wire and ground, with one of the dash buttons pressed. If it
doesn't drop to the right value, something's wrong with the adapter harness.
Alternately, you can check for continuity (~0 ohms) between the green wire connection at the DCI end,
and the green wire pin in the 20-pin connector, of the adapter harness itself.

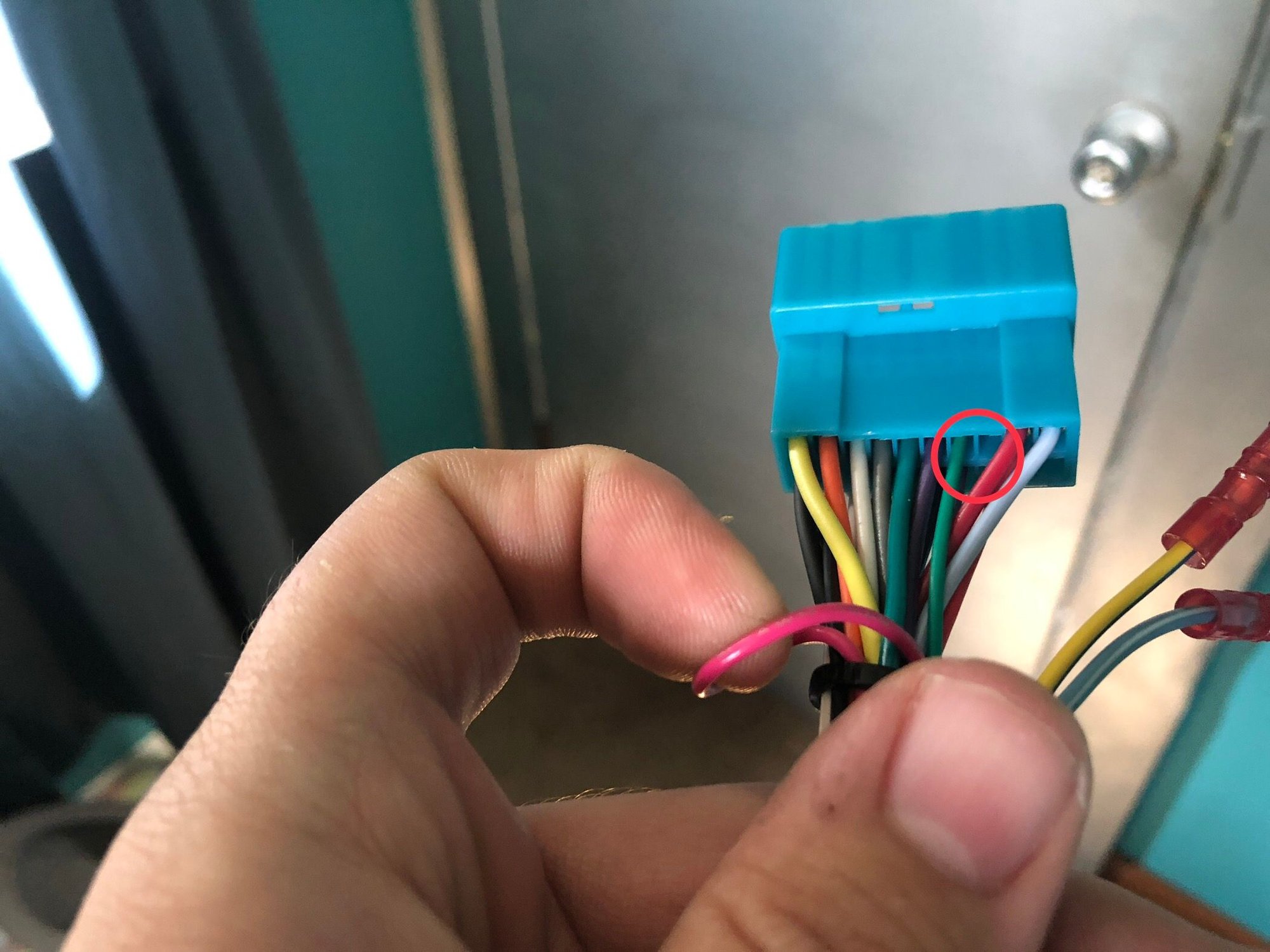

Thats exactly what it was. The pin was in the wrong position. Bob sent me a pic of a customer’s connector with a bent pin and in cross-referencing my own I saw it was off by one position. 30 seconds with a ground-down bobby pin and we’re copacetic. I’ll check it out tomorrow morning as my car is presently in a different location and I’m not going back there today. Pretty sure we can say definitively the problem is solved at this point though; but I’ll update tomorrow to confirm. Thanks for the input guys!






Last edited by Kyle; 09-05-2018 at 10:41 AM.
Kyle is offline
Old 09-14-2018, 12:22 AM
  #8
Registered User
Thread Starter

Kyle's Avatar

Join Date: Jun 2018
Location: Connecticut :(
Posts: 752
Liked 63 Times in 58 Posts
Default

Apologies for the delay in concluding this. Everything is working as it should, crazy what a runaround this was over the harness being improperly pinned (it happens). Glad it's sorted now and everything is functioning as it should be.


Edit: Radio is fine, pic actually snapped right when I was switching modes! It works!




Last edited by Kyle; 09-14-2018 at 12:25 AM.
Kyle is offline
